Relative streams

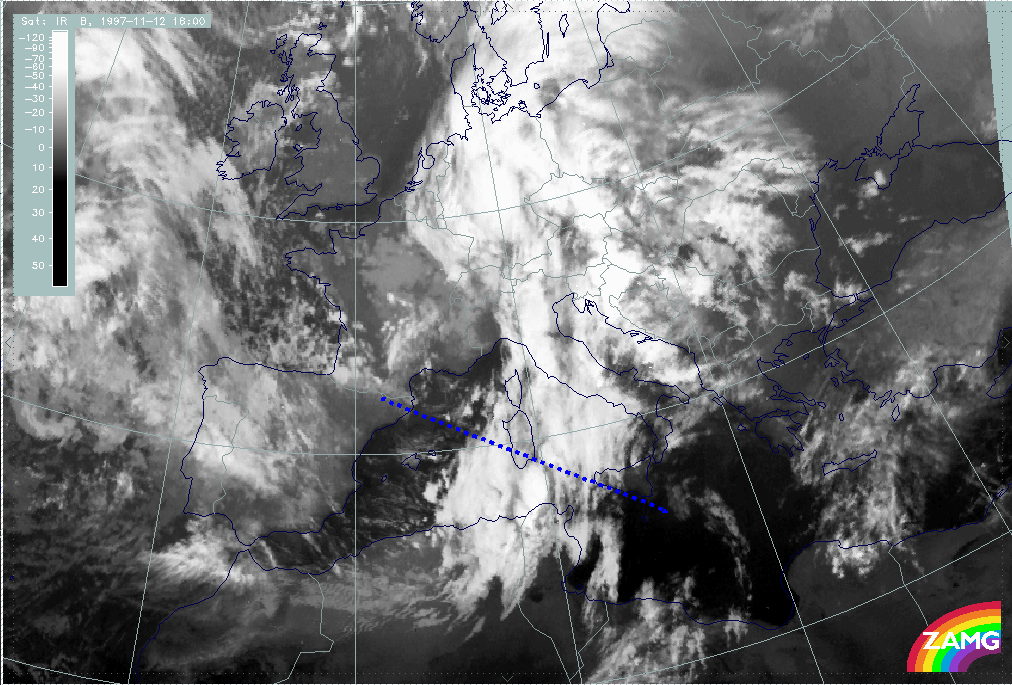

12 November 1997/18.00 UTC - Meteosat IR image; position of vertical cross section indicated
|

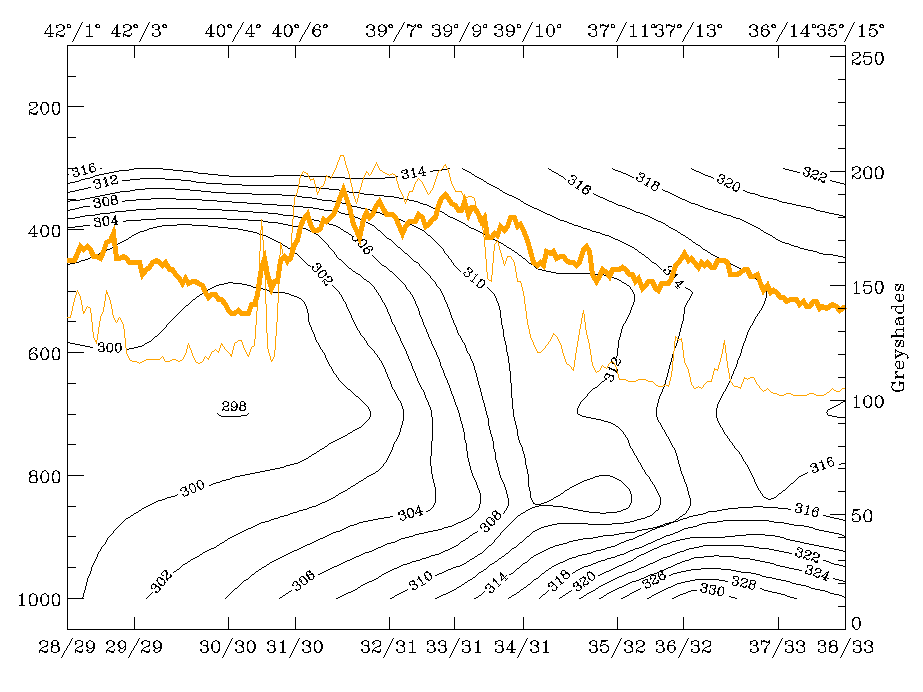

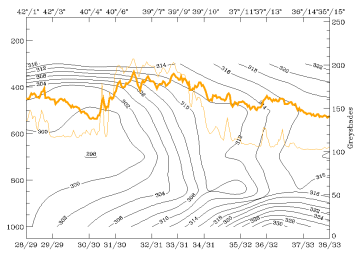

12 November 1997/18.00 UTC - Vertical cross section; black: isentropes (ThetaE), orange thin: IR pixel values, orange thick: WV pixel
values
|

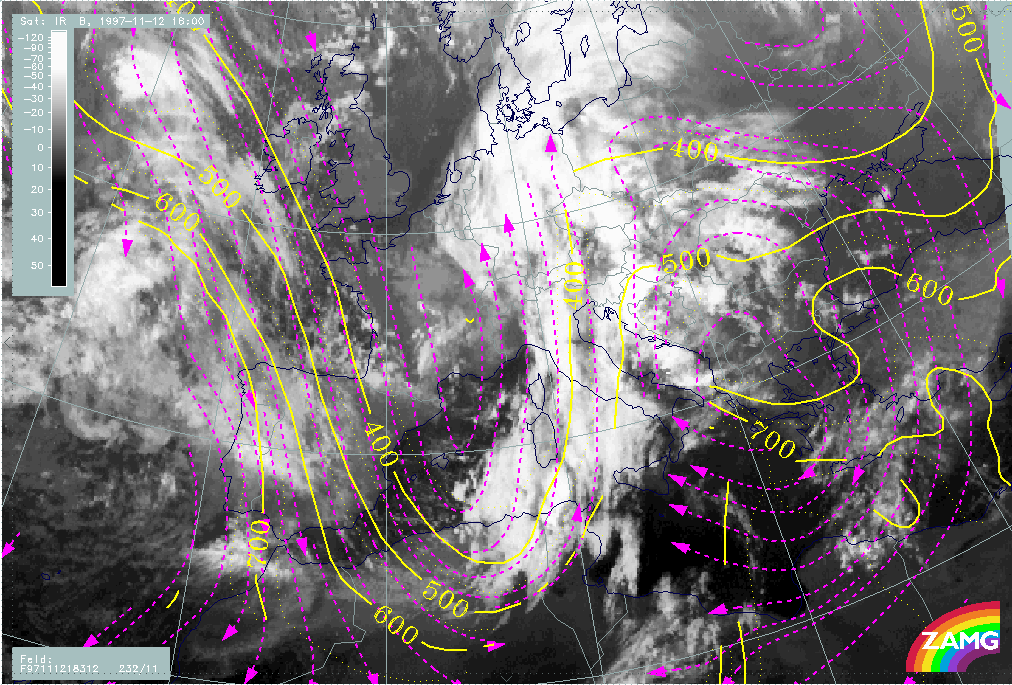

12 November 1997/18.00 UTC - Meteosat IR image; black: shear vorticity 300 hPa, magenta: relative streams 312K - system velocity
232° 11 m/s, yellow: isobars
|
|
Few if any changes took place involving different relative streams (left image bottom). The most important facts can be summarised as follows:
- The rising Warm Conveyor Belt is responsible for the cloudiness over the Balkan Peninsula in front of the frontal system;
- Both relative streams from behind the front are involved in the frontal cloud band;
- A dry air stream connected with the crossing jet streak on its cyclonic side penetrates into the area in front of the frontal cloud band over Tunisia and the adjacent Mediterranean Sea.
