Key Parameters

Front Delay

General frontal characteristics and the specifics for the frontal delay are given by the following key parameters:

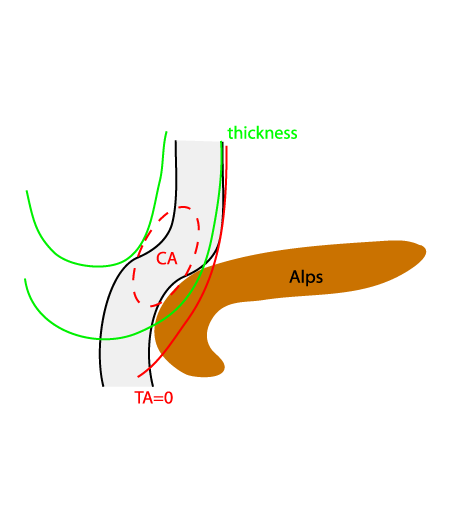

  • TFP, Equivalent thickness and Temperature advection at 700 hPa, all of the parameters necessary to interpret Conceptual Model of a Cold Front (see Cold Front - Key Parameters ).
  • Wind in lower troposphere, namely at 1000, 850 and 700 hPa
  • (Relative) humidity in lower and upper troposphere

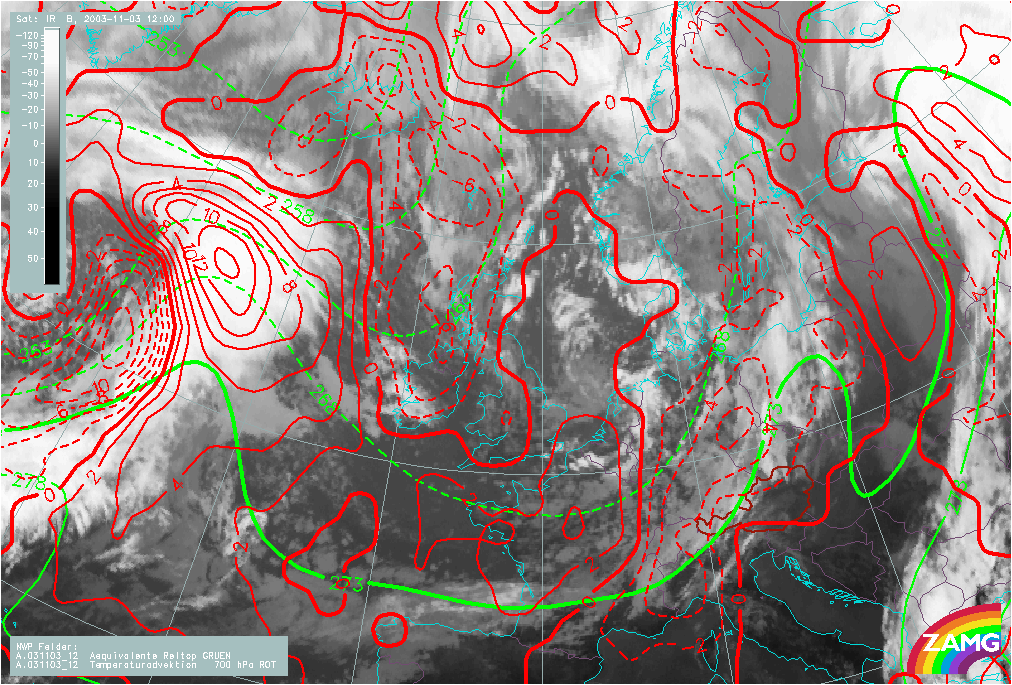

03 November 2003/12.00 UTC - Meteosat IR image; red dashed: temperature advection - CA 700 hPa, red solid: temperature advection - WA 700 hPa, green: equivalent thickness

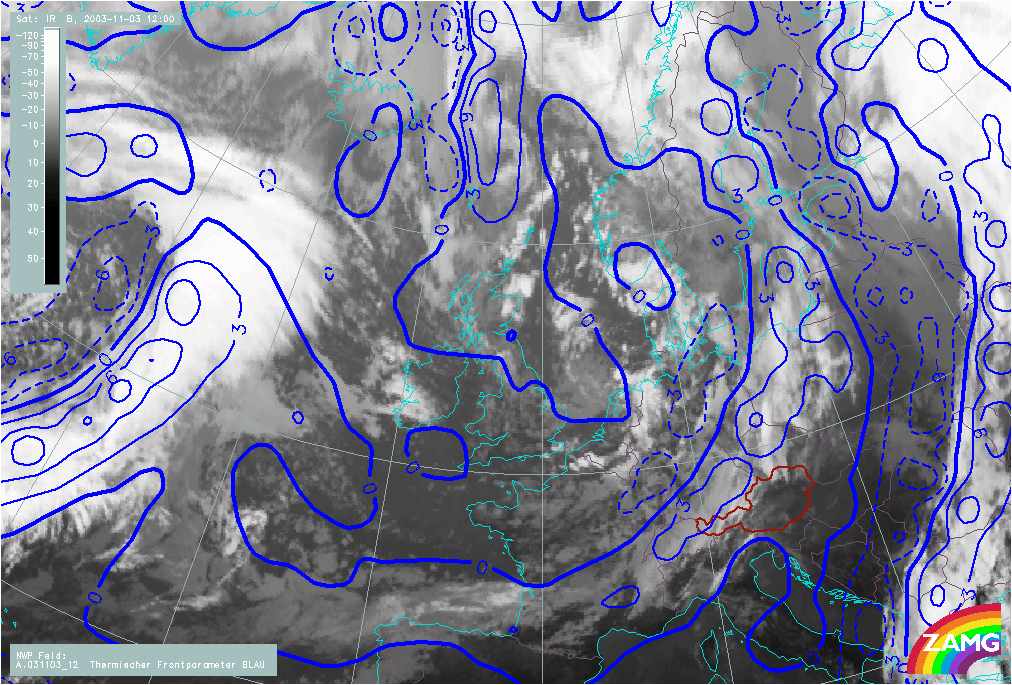

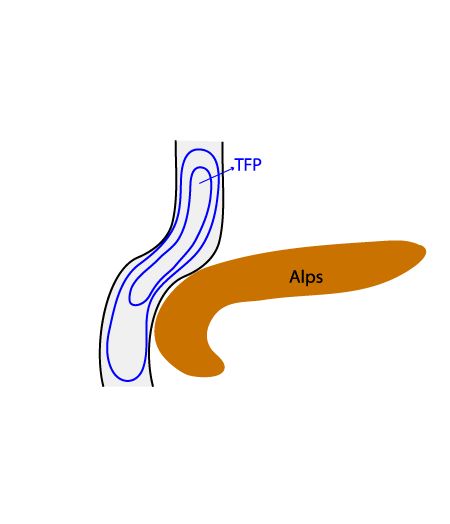

03 November 2003/12.00 UTC - Meteosat IR image; blue: TFP

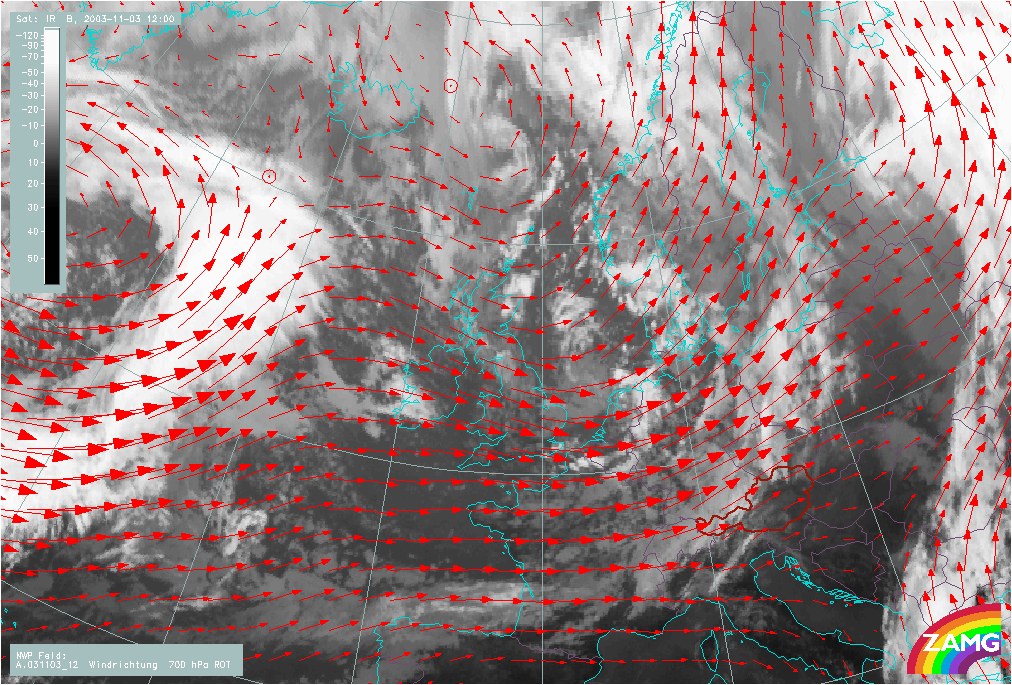

03 November 2003/12.00 UTC - Meteosat IR image; red: wind vectors 700 hPa

Since the details of the flow are of great importance to understand the mechanisms of the orographic effects on frontal cloud bands, LAM wind fields are much more suitable to get the insight into the frontal characteristics.

  • Wind in higher troposphere is not influenced by the orography and shows the general flow which, in the case favourable for any kind of deformation of a frontal cloud, is westerly.

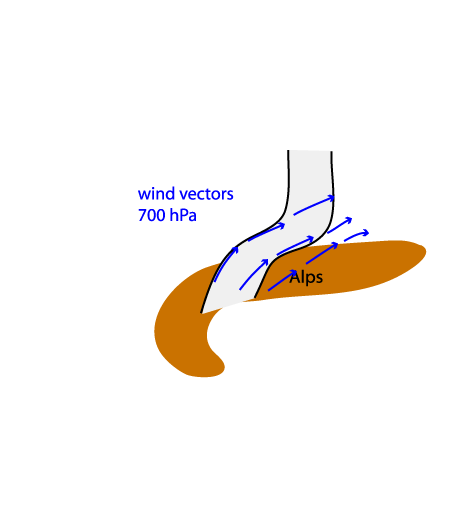

  • At 700 hPa near to the orographic barrier, wind is backing to south-westerly direction. Also, a high horizontal gradient in the area of the delay is observed.
  • At 850 hPa a significant disturbance by the mountain chain is evident. Generally, wind speeds are much reduced ahead of the frontal surface.

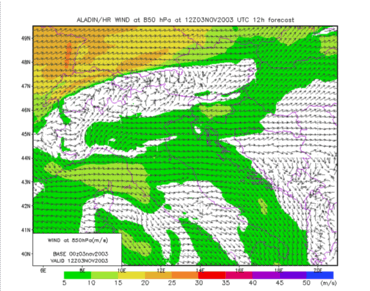

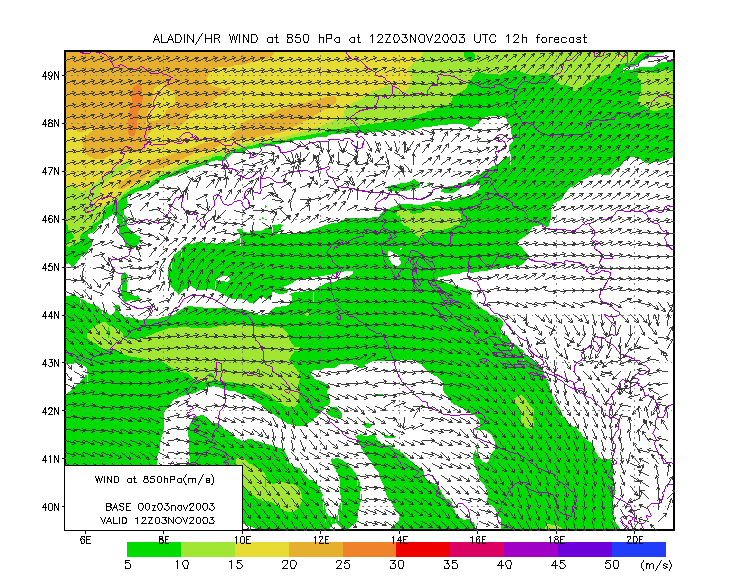

03 November 2003/12.00 UTC - LAM ALADIN; wind vectors 850 hPa

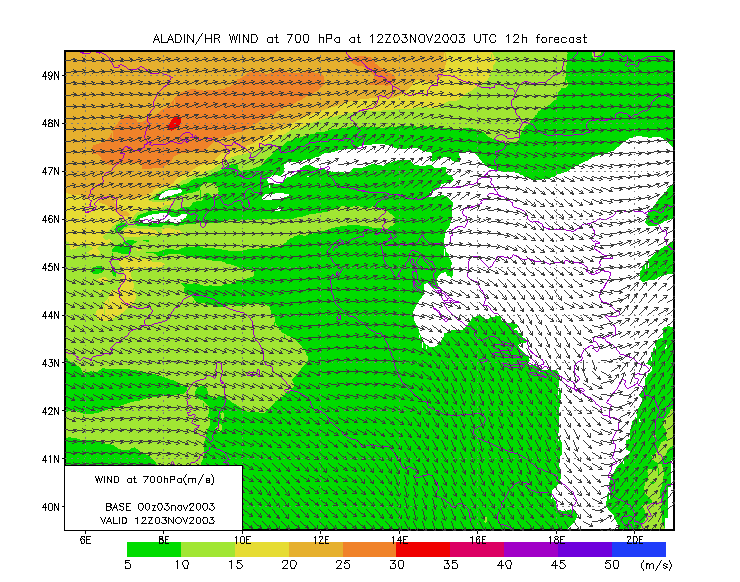

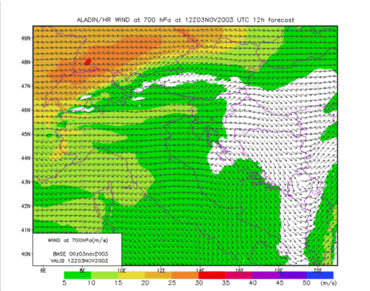

03 November 2003/12.00 UTC - LAM ALADIN; wind vectors 700 hPa

Model fields can also give the insight in separation of cloudiness at different levels.

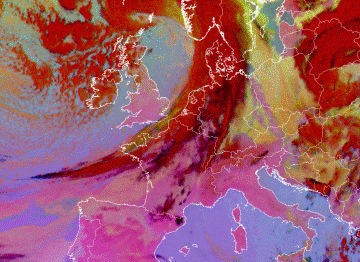

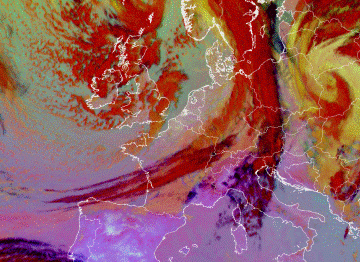

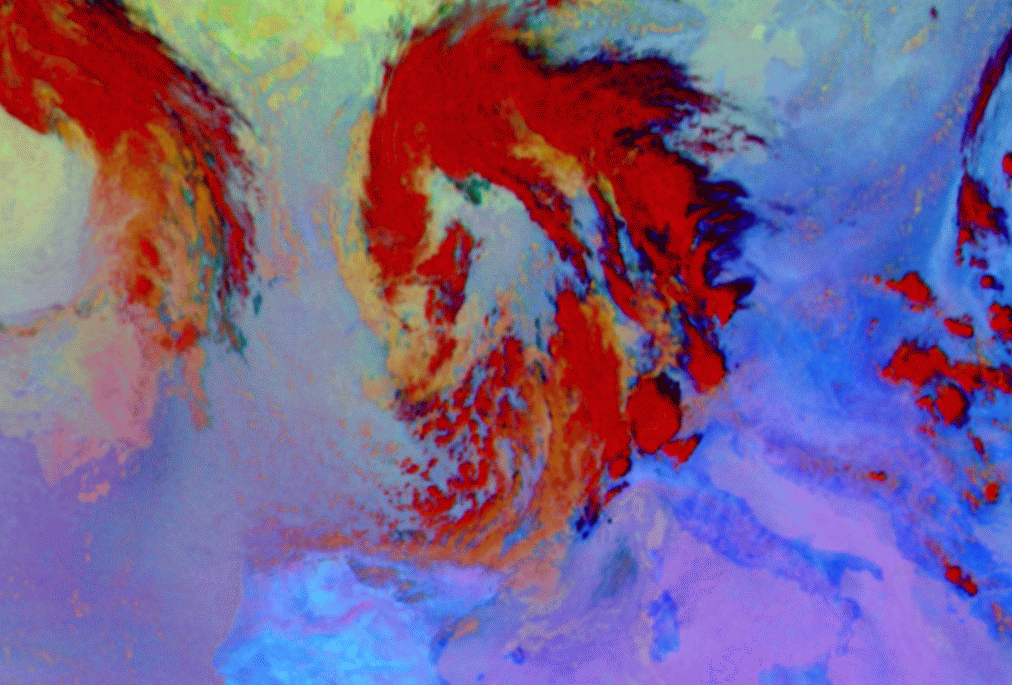

17 July 2009/15.00 UTC - Meteosat 9 Microphysics RGB image
18 July 2009/12.00 UTC - Meteosat 9 Microphysics RGB image

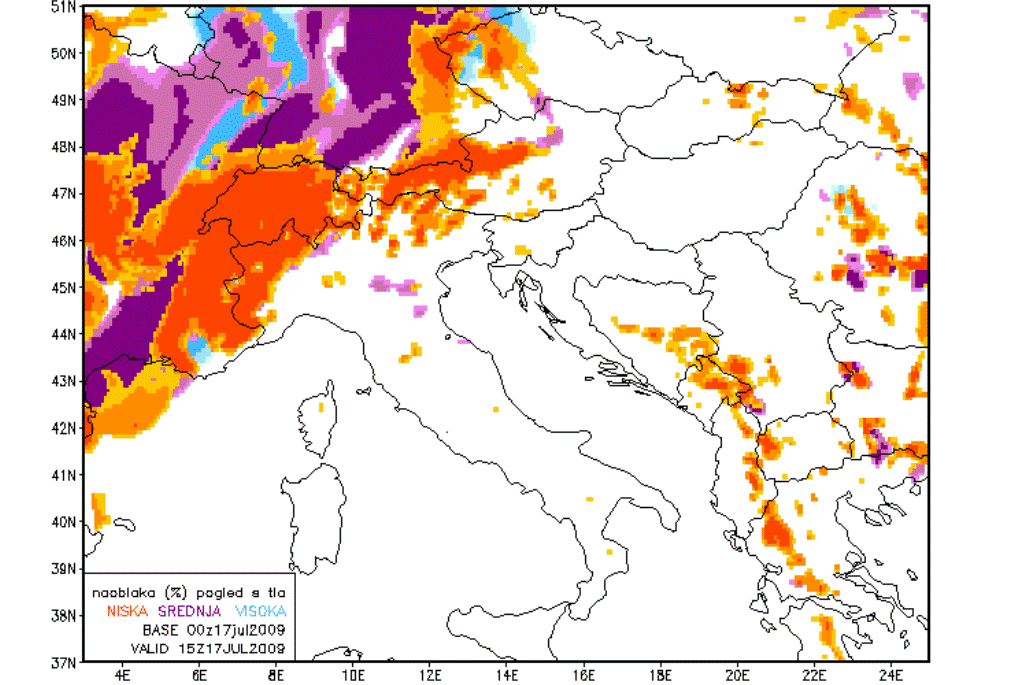

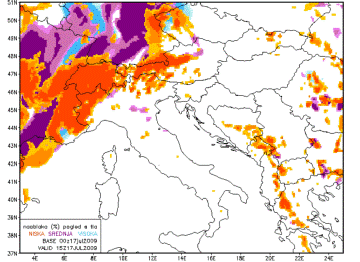

17 July 2009/15.00 UTC - LAM ALADIN; low (orange), middle (violet) and high (light blue) clouds as seen from the ground

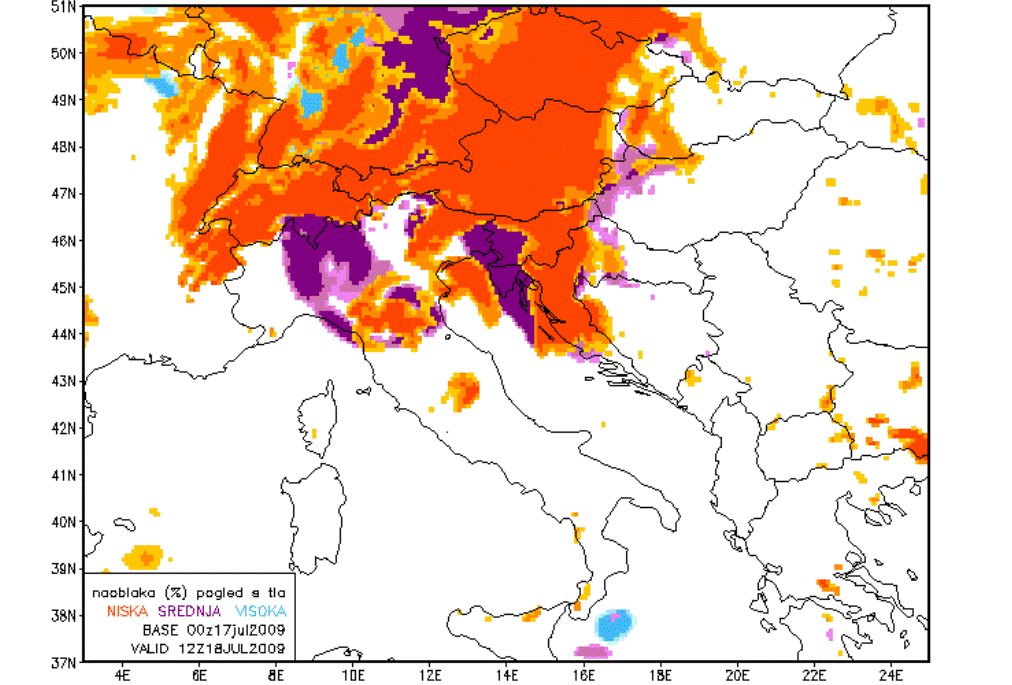

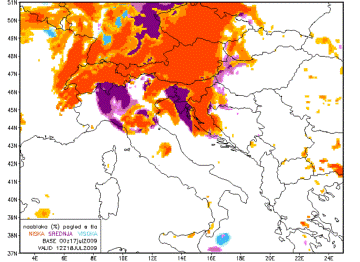

18 July 2009/12.00 UTC - LAM ALADIN: low (orange), middle (violet) and high (light blue) clouds as seen from the ground

Cloudiness field shows a compact frontal cloud band approaching the Alps. 21 hours later the front has passed, mainly north of the barrier, while low clouds are kept behind the mountain chain. Moreover, the separation of the front in different vertical levels is nicely depicted by humidity fields.

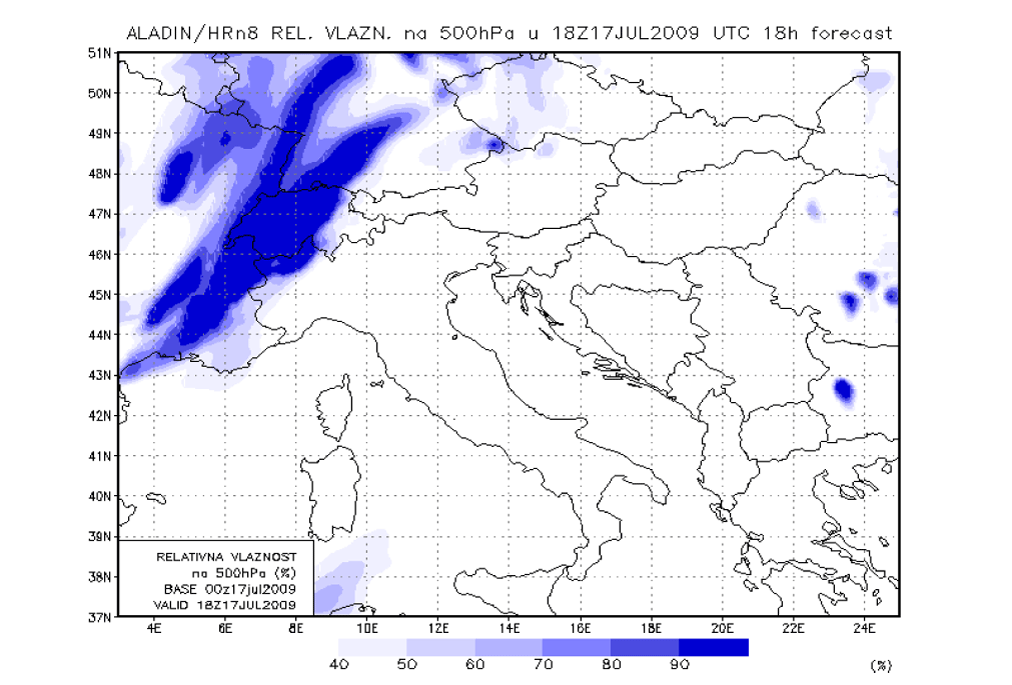

17 July 2009/18.00 UTC - LAM ALADIN; relative humidity at 500 hPa

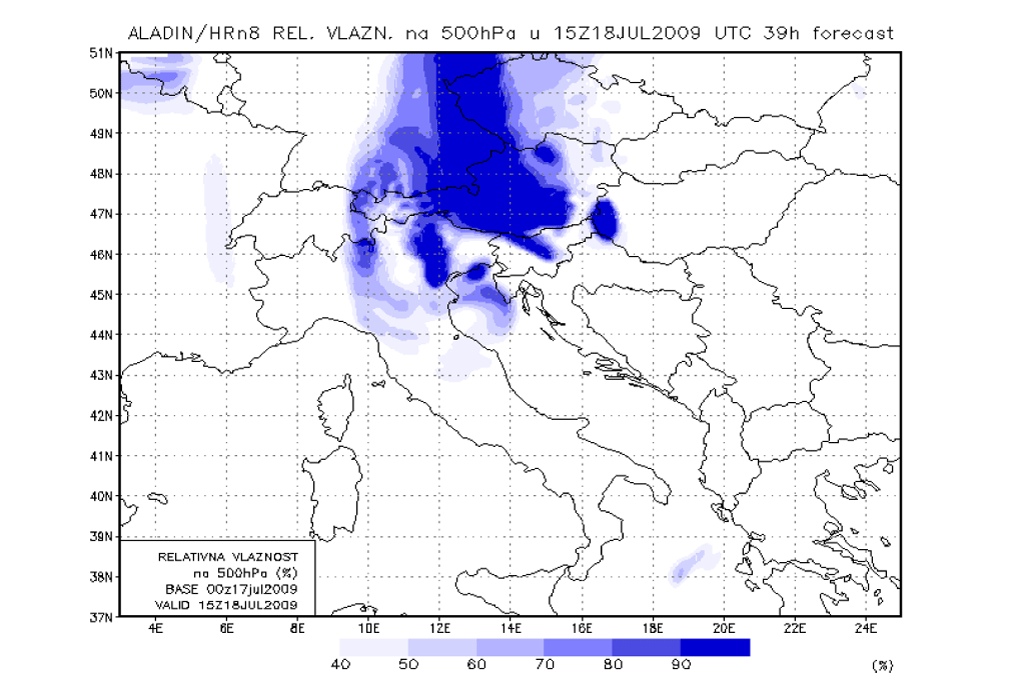

18 July 2009/15.00 UTC - LAM ALADIN; relative humidity at 500 hPa

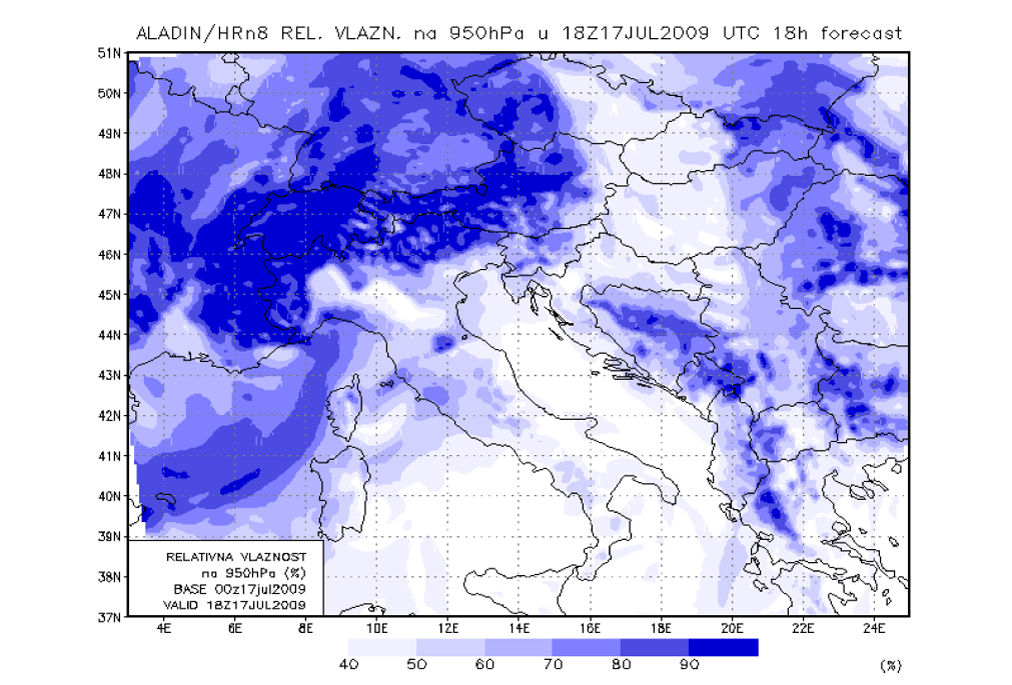

17 July 2009/18.00 UTC - LAM ALADIN; relative humidity at 950 hPa

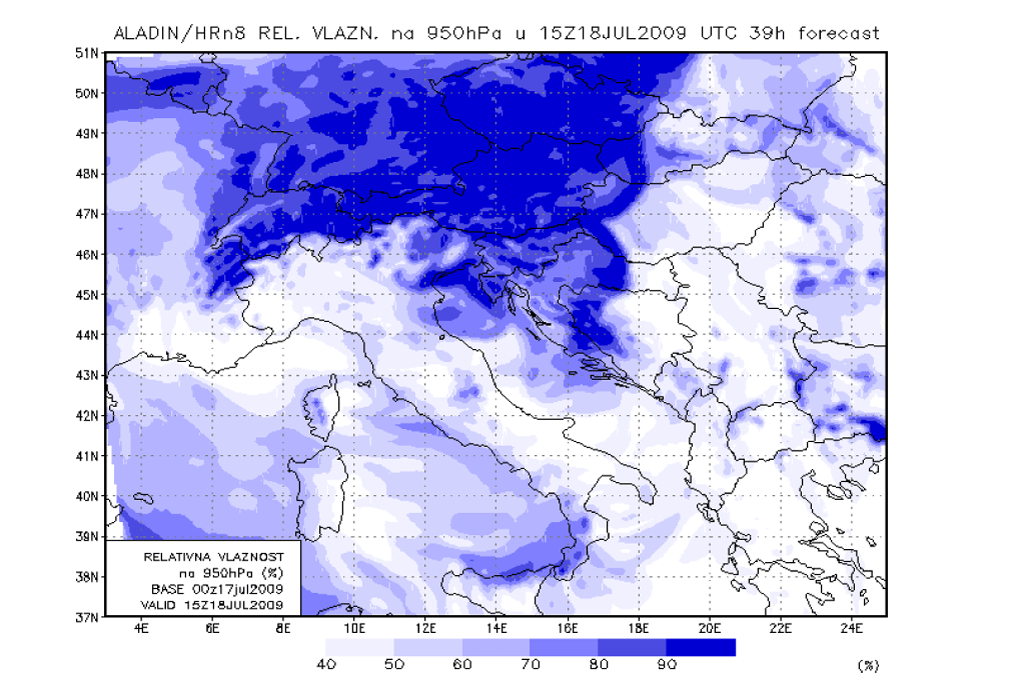

18 July 2009/15.00 UTC - LAM ALADIN; relative humidity at 950 hPa

Decoupling of clouds at different heights

Analogously to the case of the Front Delay general frontal characteristics are given by the following key parameters:

  • TFP, Equivalent thickness and Temperature advection at 700 hPa, all of the parameters necessary to interpret Conceptual Model of a Cold Front (see Cold Front - Key Parameters ).
  • Wind in lower troposphere, namely at 1000, 850 and 700 hPa
  • (Relative) humidity in lower and upper troposphere

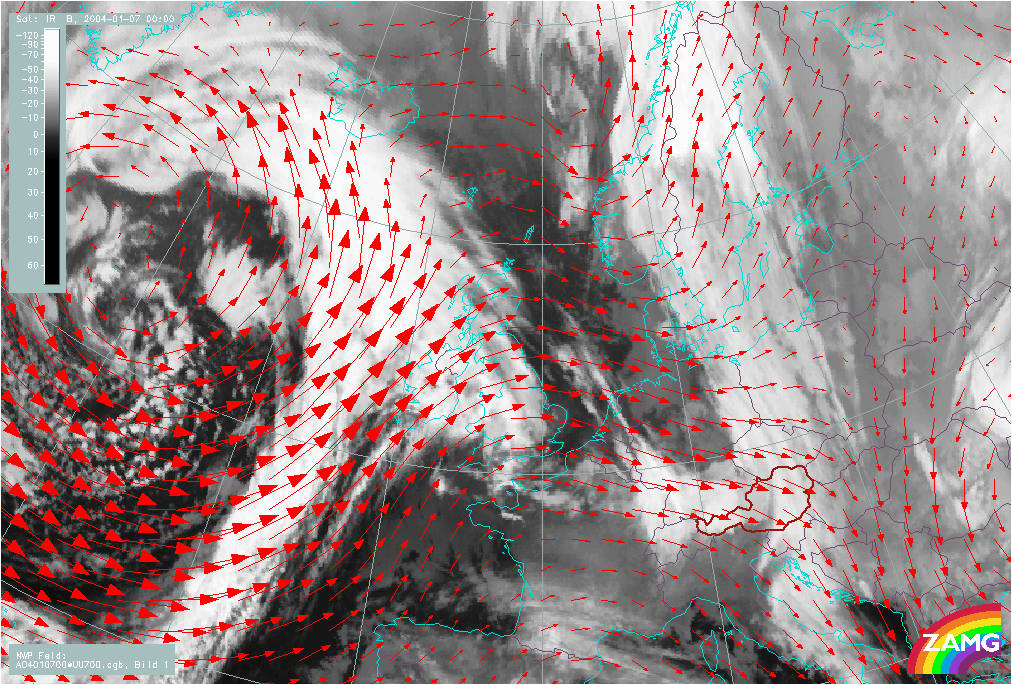

07 January 2004/12.00 UTC - Meteosat IR image; red: wind vectors at 700 hPa

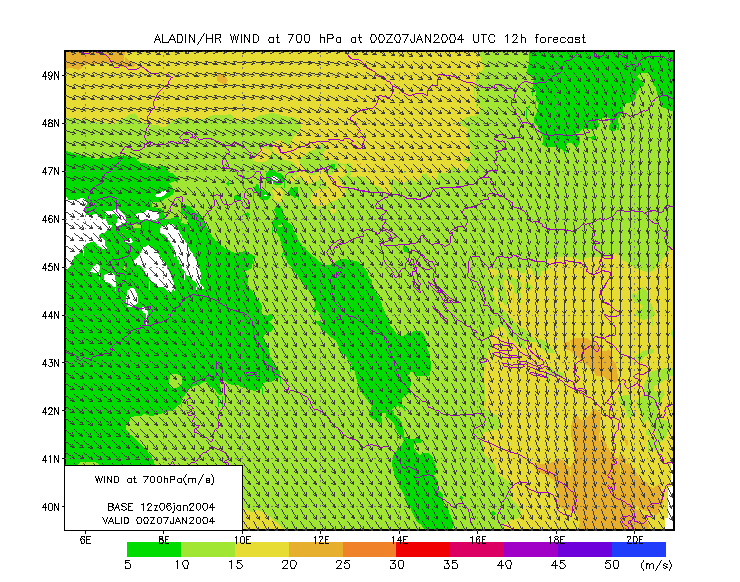

07 January 2004/12.00 UTC - LAM ALADIN; wind vectors 700 hPa

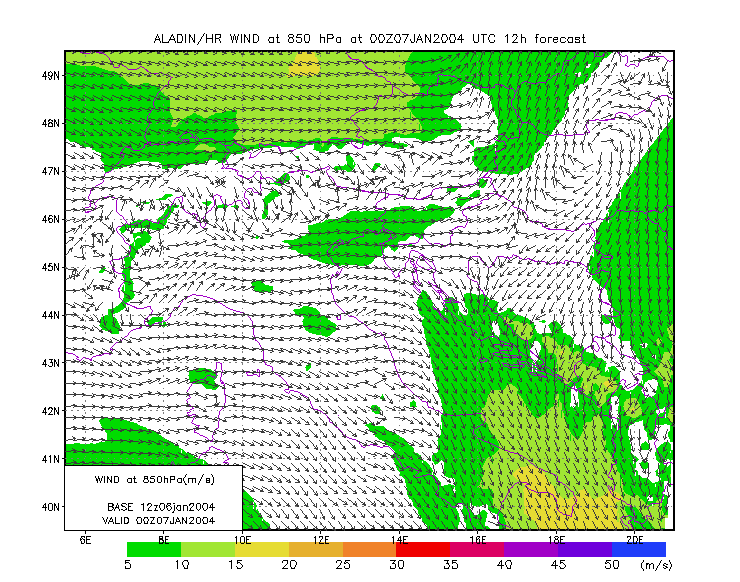

07 January 2004/12.00 UTC - LAM ALADIN; wind vectors 850 hPa

Considering the flow favourable for the decoupling of the frontal cloud, one has to pay attention to the following:

  • Equivalently to the conditions of front delay, the wind in higher troposphere is not influenced by the orography and shows the general flow which, in the case favourable for any kind of deformation of a frontal cloud, is westerly.

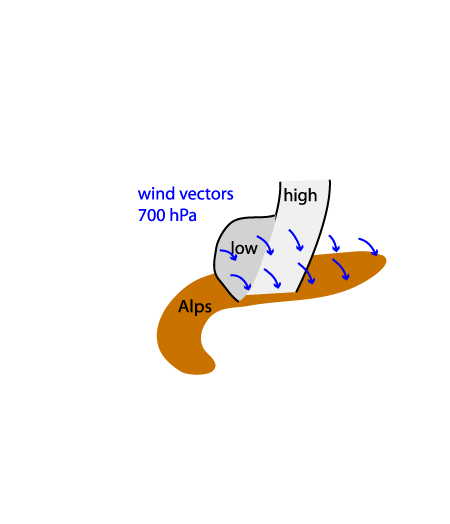

  • At 700 hPa near to the orographic barrier, wind is veering to north-westerly direction.
  • Wind field clearly shows the location of the different parts of the front: decreasing at the boundary between high and low cloudiness.
  • At the lower levels (850 hPa) wind speed is significantly reduced. Moreover, different velocities at different levels once again point out on decoupling of clouds.
In accordance to the satellite images, cloudiness fields show that high clouds pass over the mountain chain at the leading side of the frontal zone, while middle and low stay behind.

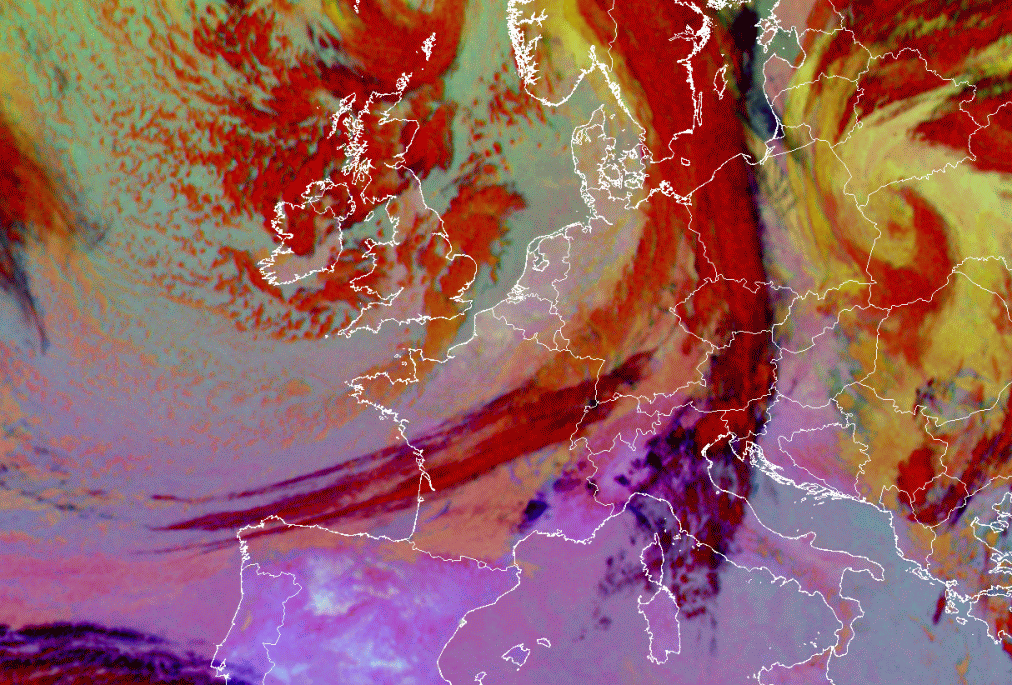

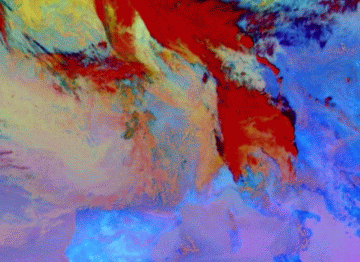

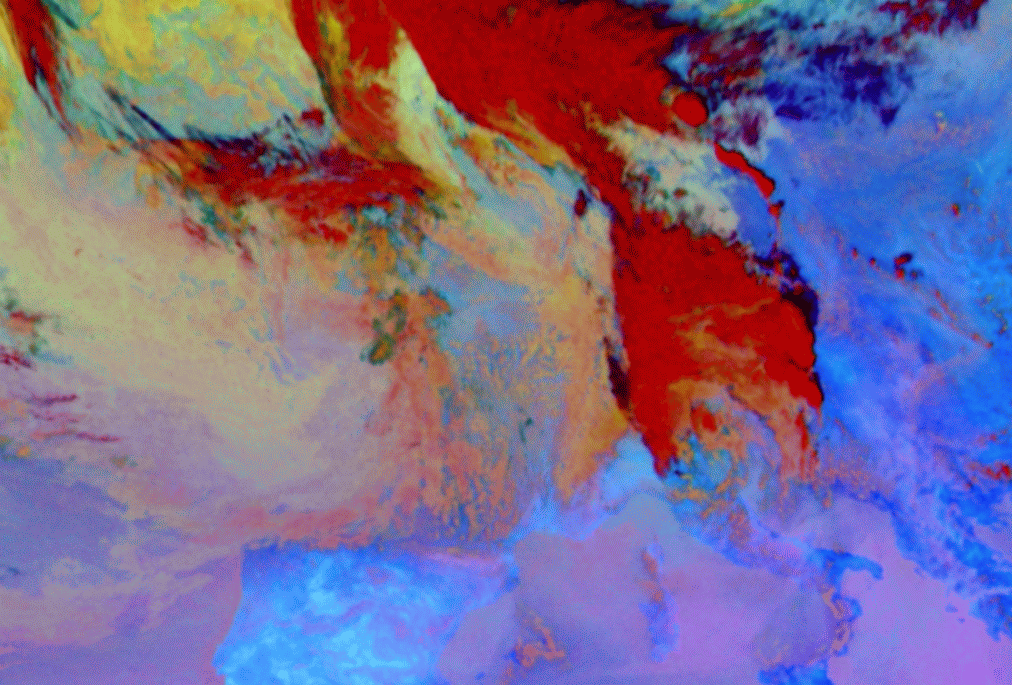

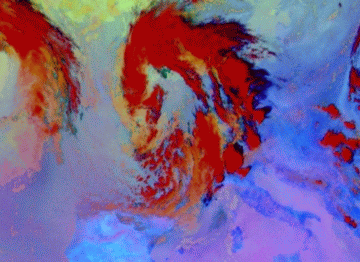

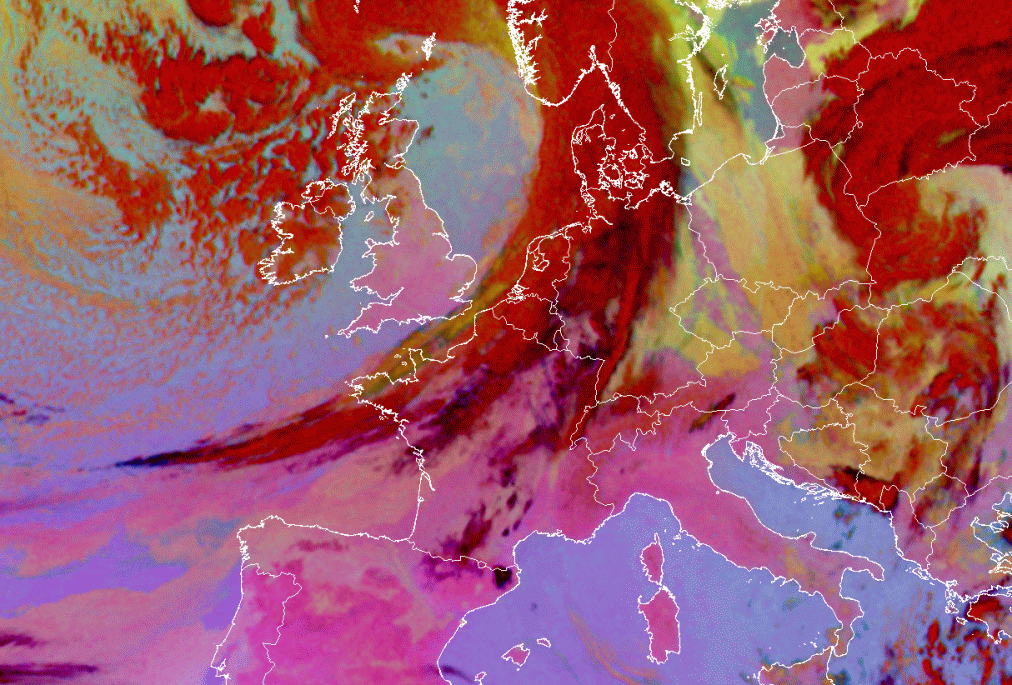

08 March 2009/06.00 UTC - Meteosat 9 Microphysics RGB image
08 March 2009/15.00 UTC - Meteosat 9 Microphysics RGB image

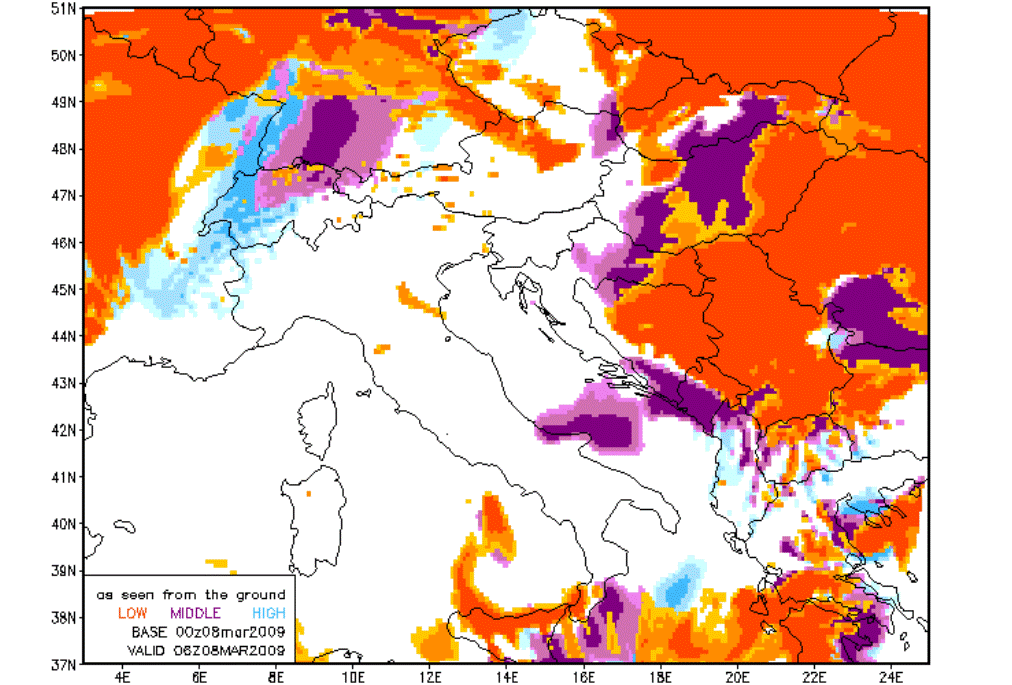

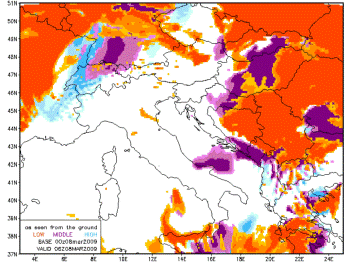

08 March 2009/06.00 UTC - LAM ALADIN; low (orange), middle (violet) and high clouds as seen from the ground

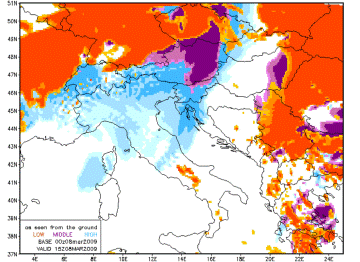

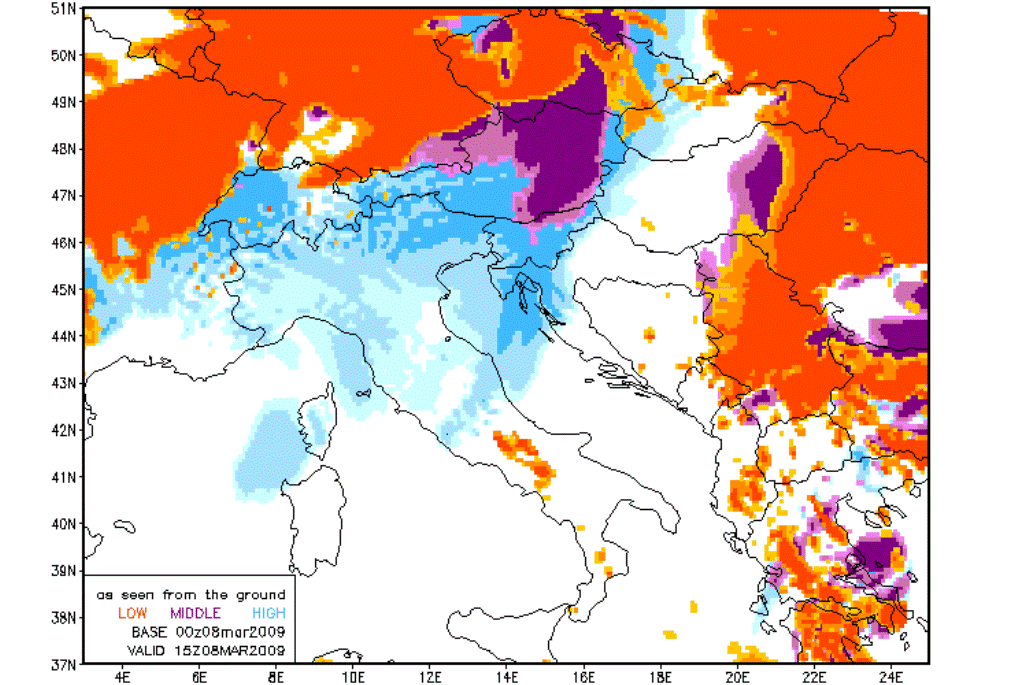

08 March 2009/15.00 UTC - LAM ALADIN: low (orange), middle (violet) and high (light blue) clouds as seen from the ground

What is seen as the clouds essentially is humidity throughout the troposphere. Therefore, the humidity fields can testify that, as the front progresses to the west, only the humidity at 500 hPa gets advected by the upper level flow, while middle and especially the low ones (depicted by humidity of 950 hPa level) is retained behind the obstacle.

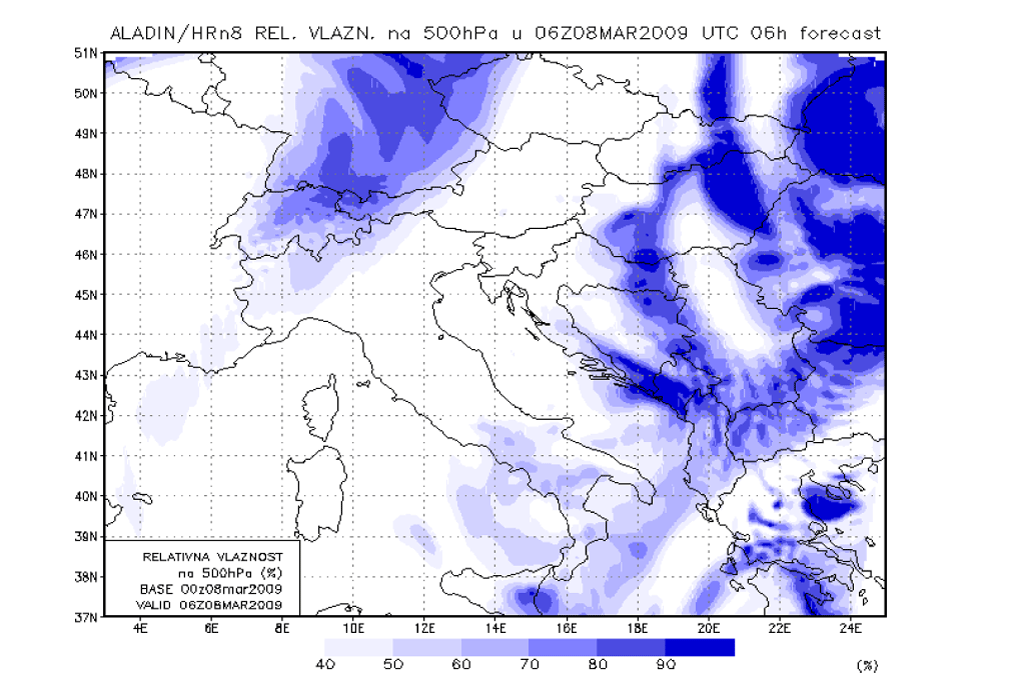

08 March 2009/06.00 UTC - LAM ALADIN; relative humidity at 500 hPa

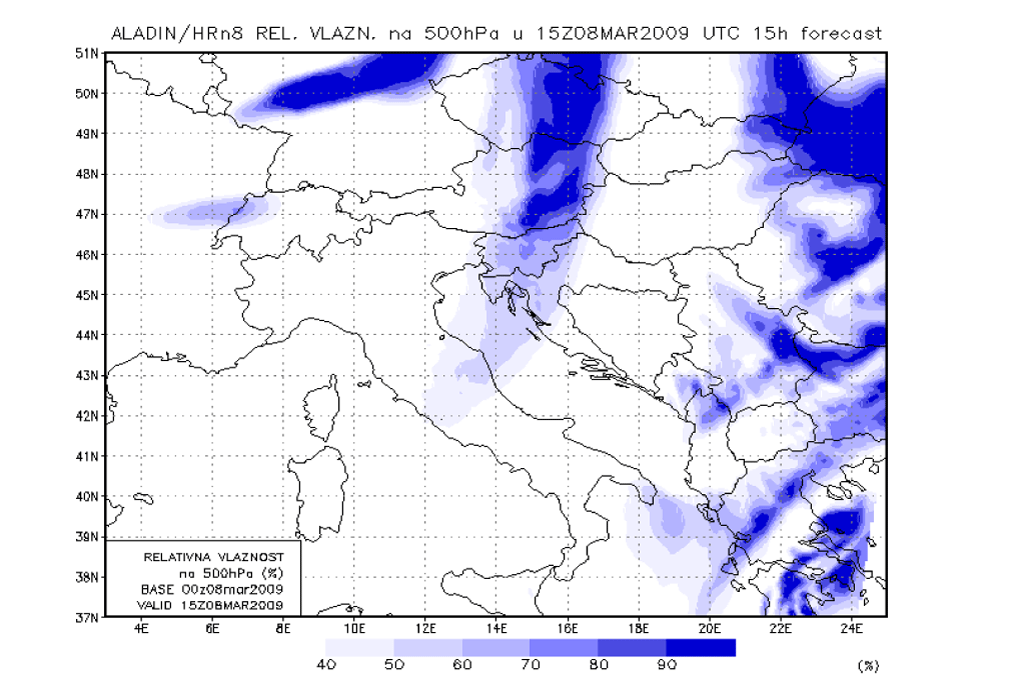

08 March 2009/15.00 UTC - LAM ALADIN; relative humidity at 500 hPa

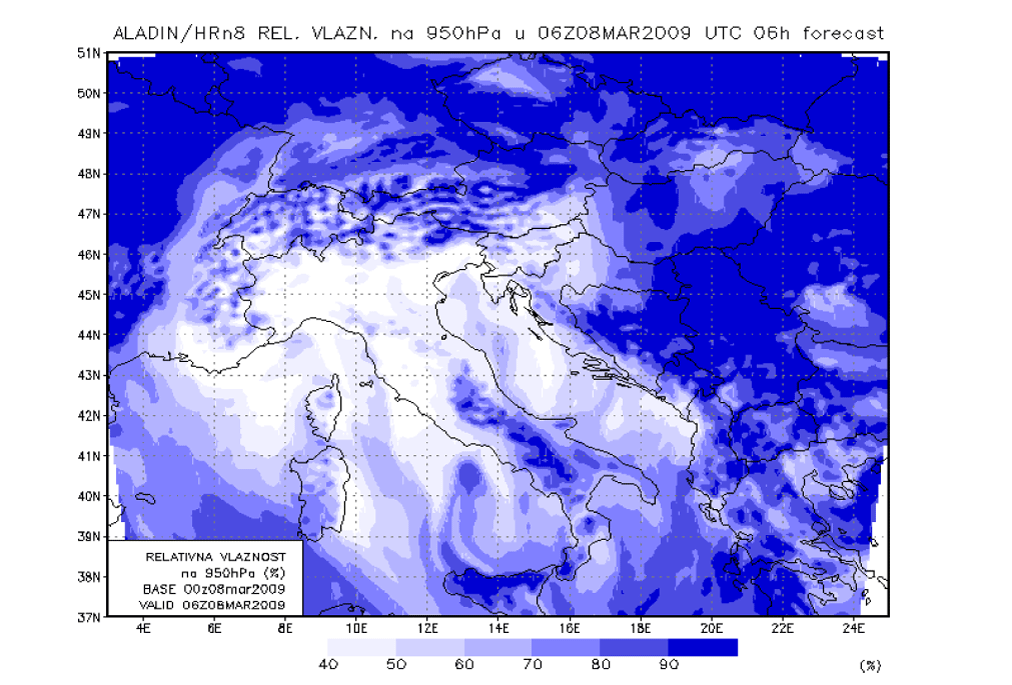

08 March 2009/06.00 UTC - LAM ALADIN; relative humidity at 950 hPa

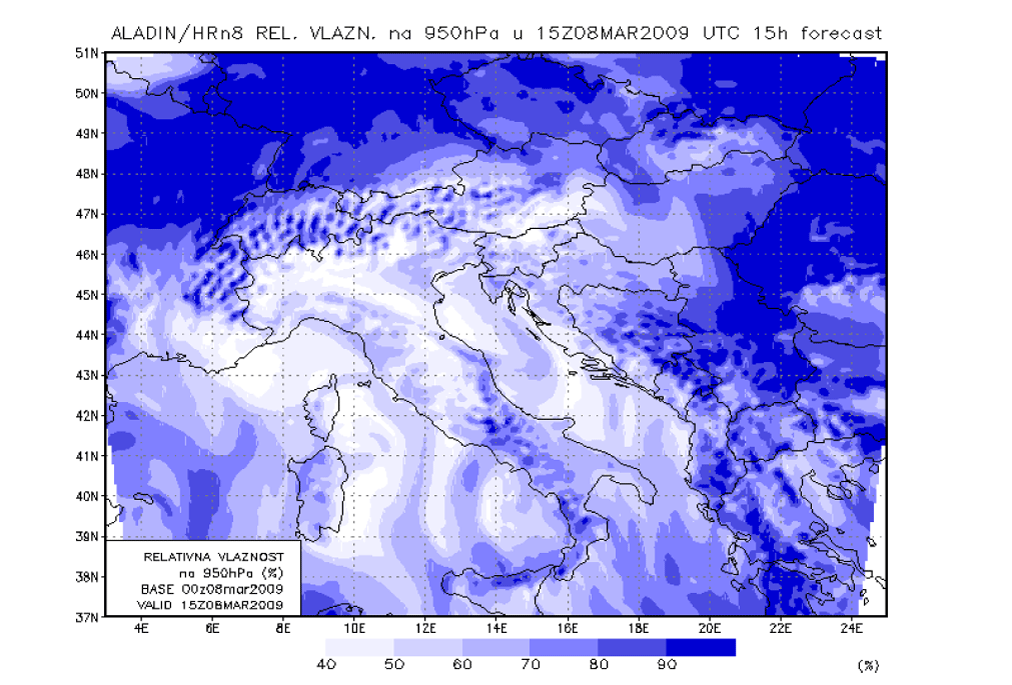

08 March 2009/15.00 UTC - LAM ALADIN; relative humidity at 950 hPa
