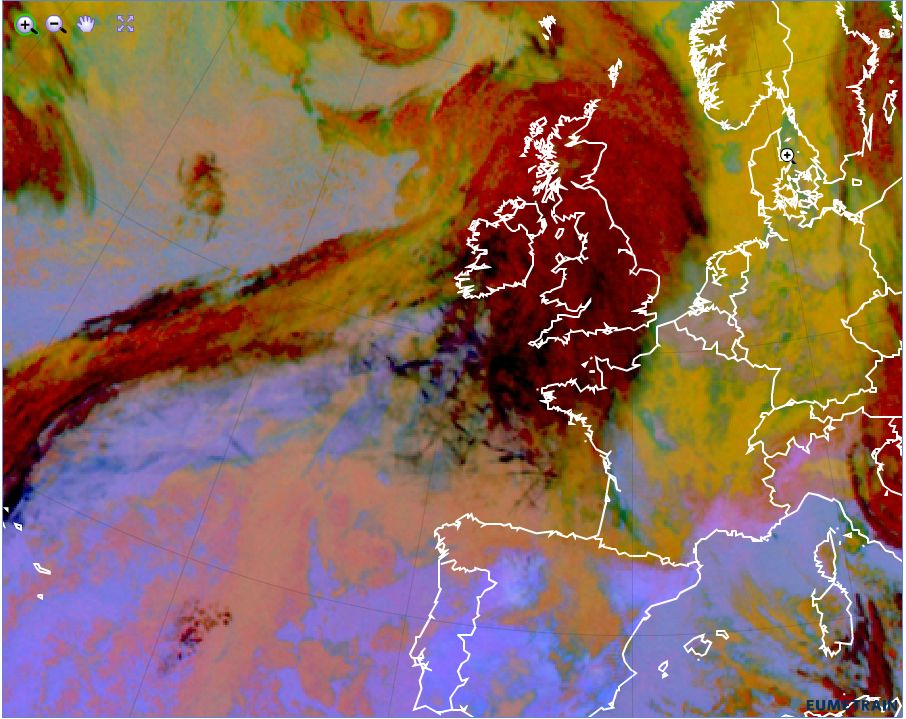

The Dust RGB
Information received from the three channels that contribute to the RGB combination
IR 12 - 10.8 (difference of the two IR window channels. Split window)
|
Information about dust, which gives a high contribution of red component
|
10.8 - 8.7 (difference of two IR window channels)
|
Differentiation between water and ice clouds (channel 07 identifies ice clouds better)
|
10.8 (IR Window channel)
|
Information about cloud top temperatures
|
Resulting colors for typical features
Pink
|
Dust
|
Red
|
Thick ice cloud
|
Black
|
Cirrus
|
Orange/yellowish/green
|
Low cloud
|
Typical application areas
- Detection of synoptic, mesoscale and local cloud systems
- Discrimination of different cloud systems and cloud thicknesses (thick - high thin - low cloud)
- Detection of sand storms
- Detection of SO2 plumes from volcanoes
