Introduction and short case description

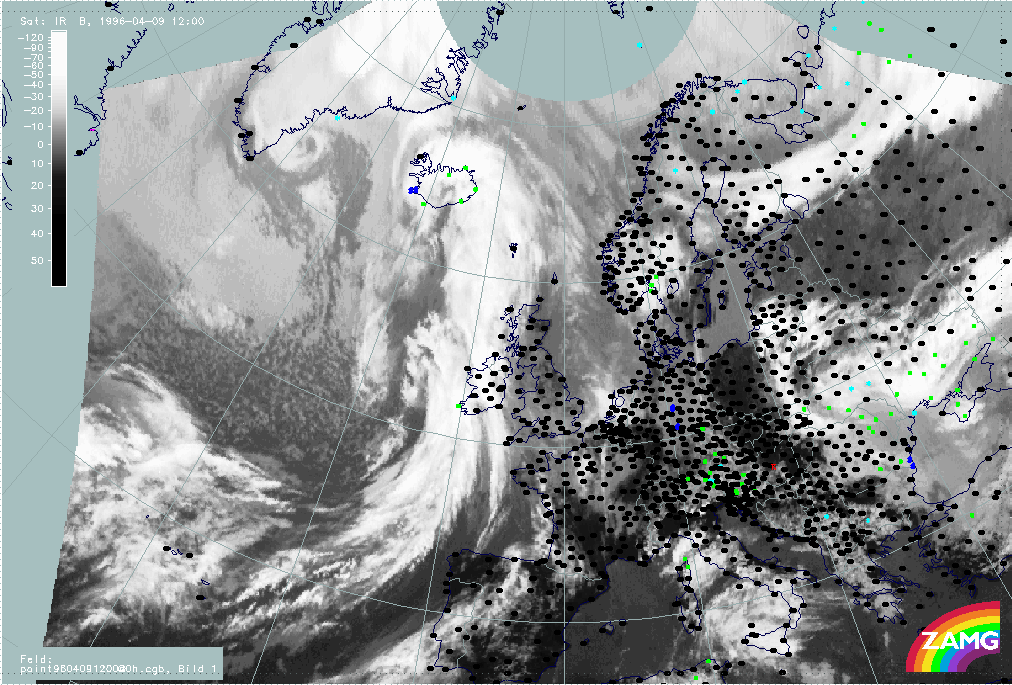

09 April 1996/12.00 UTC - Meteosat IR image; weather events (green: rain and showers, blue: drizzle, cyan: snow, purple: freezing rain, red: thunderstorm with precipitation, orange: hail, black: no actual precipitation or thunderstorm with precipitation)
09 April 1996/12.00 UTC - Meteosat IR image; SatRep overlay: names of conceptual models

The satellite image contains the cloud band of a Cold Front in Warm Advection stretching from the Bay of Biscay across Ireland to east Iceland. Immediately behind the southern part of this cold front a second cloud band of a Cold Front can be observed above the Atlantic beginning east of the Azores to approximately 57N/16W. Due to the different distribution of the temperature advection this Cold Front can be divided into two parts:

  • A so-called classical Cold Front situated at the northern or downstream side of the Wave (see next paragraph);
  • A Cold Front in Cold Advection (CA) at the southern or upstream side.

Both Cold Fronts are accompanied by a mesoscale substructure in the form of a Wave. In the case of the Cold Front in Warm Advection the wave can be found above the Atlantic north-west of Ireland at approximately 59N/13W. In the case of the classical Cold Front it is situated south-west of Ireland at about 52N/12W.

Above the Atlantic north-west of the Azores at approximately 44N/35W the satellite image shows the cloud head of a Rapid Cyclogenesis at approximately 44N/37W.

Further, a band of mostly deep cloudiness (compare IR and VIS images above) extends from south England across the coast of the Netherlands to the North Sea west of Denmark at approximately 56N/08E. This cloud band is not analyzed within SatRep and will be described in more detail in the third part of this case study - "Special Investigation": Diagnosis of a Mesoscale Cloud Band.

The next image contains the superimposed names of the conceptual models diagnosed within the first level of SatRep:

  • KF: Cold Front
  • KF IN WLA: Cold Front in Warm Advection
  • KF IN KLA: Cold Front in Cold Advection
  • WELLE: Wave
  • RAPID CYCLOGENESIS: Rapid Cyclogenesis

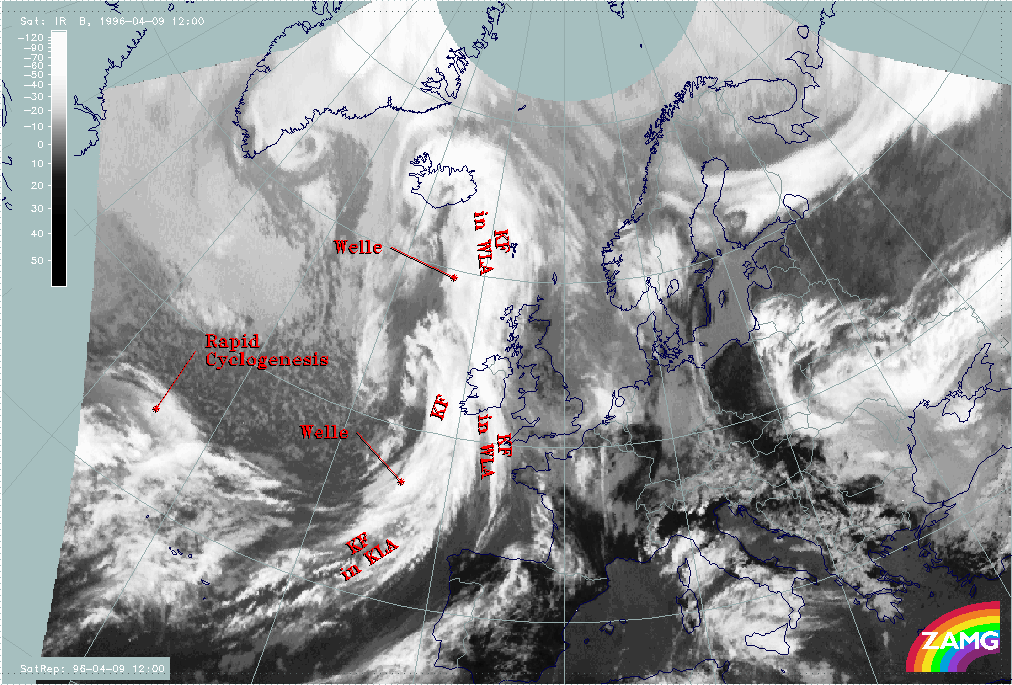

09 April 1996/12.00 UTC - Meteosat IR image; SatRep overlay: names of conceptual models

The second level of SatRep shows more detailed information about the above-mentioned conceptual models and will be described in the chapters below. The third level of SatRep, the forecast, can be found within the second part of this case study - Conceptual Models - Forecast for 09 April 1996/12.00 UTC and 18.00 UTC.
