Key Parameters
- 10m wind:

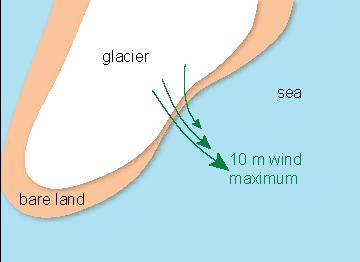

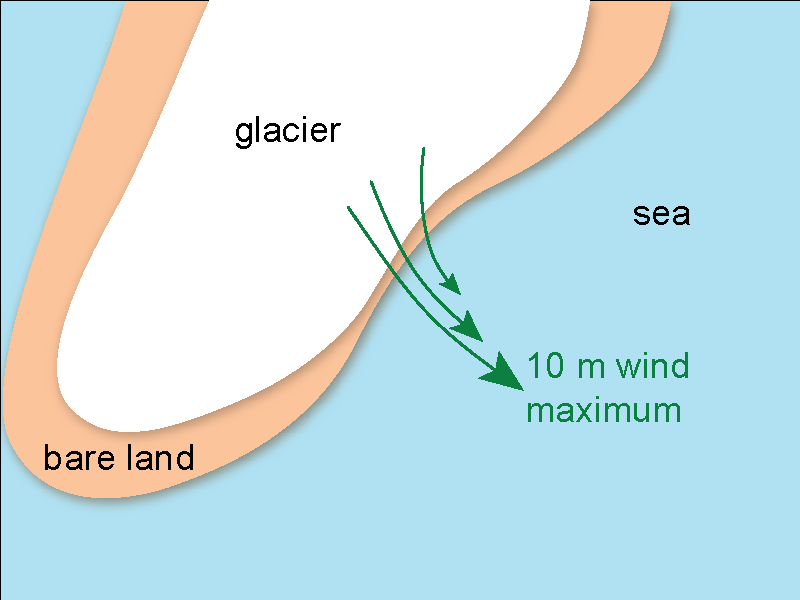

Local maximum of northwestern wind on the southeastern coast of Greenland - 700 hPa temperature advection

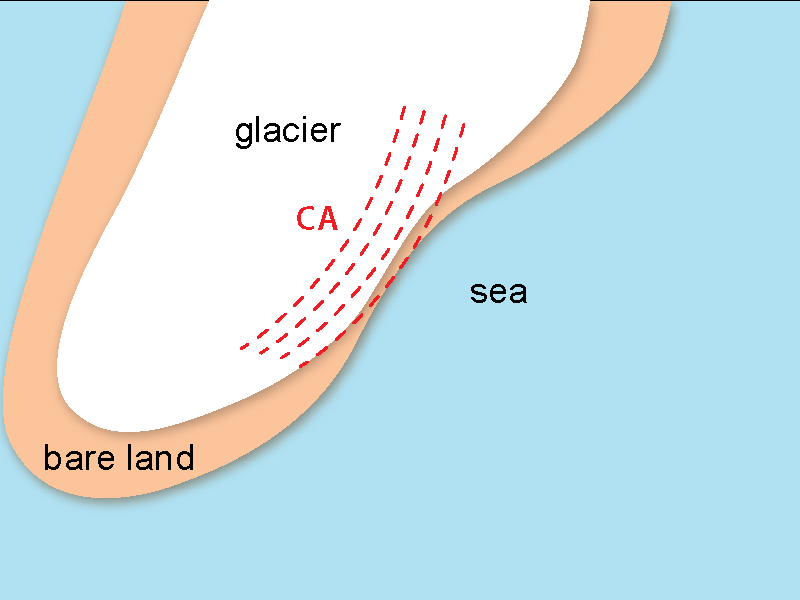

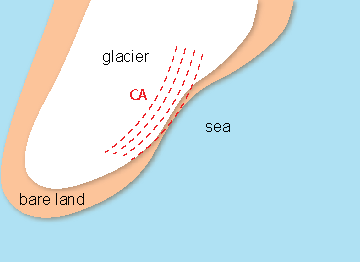

Strong cold advection on the southeastern coast of Greenland - mean sea level pressure

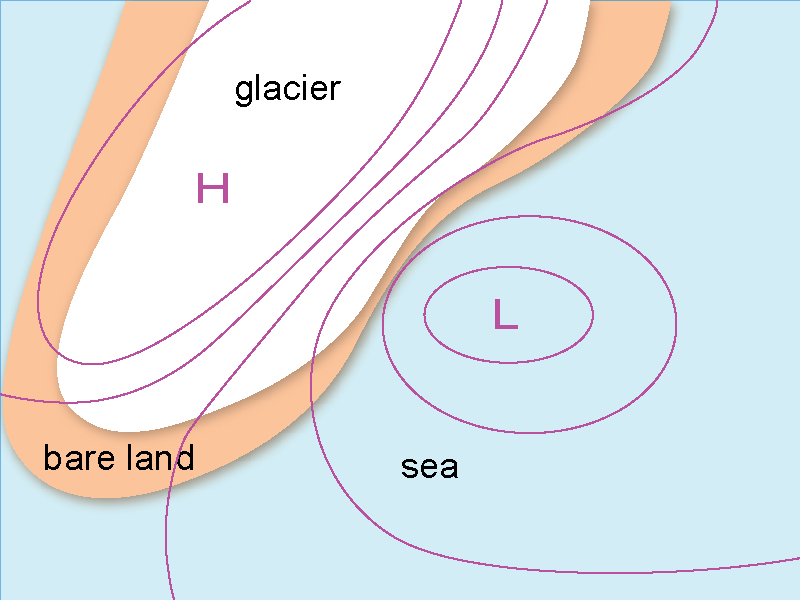

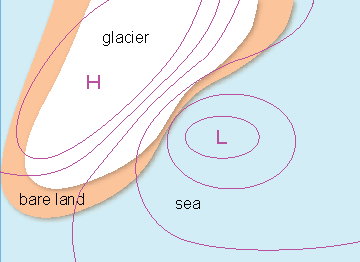

Low pressure over the sea between Iceland and Greenland - lapse rate

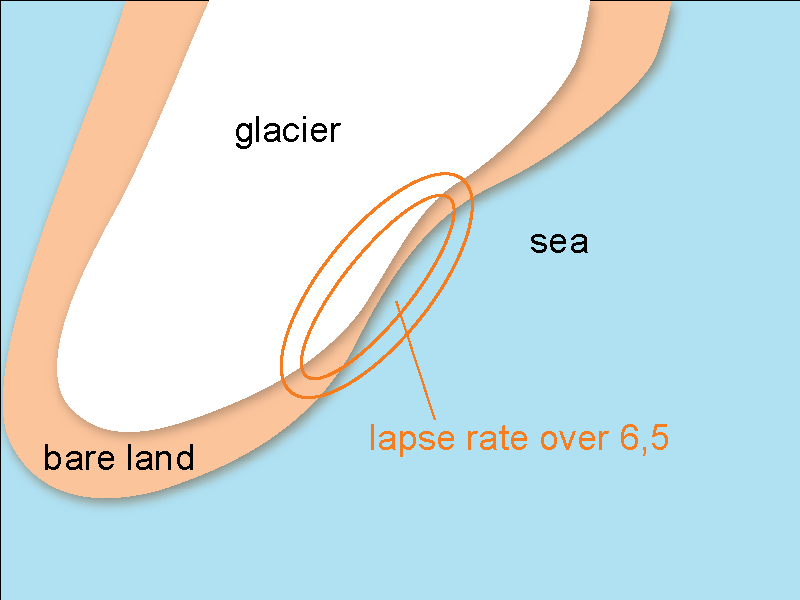

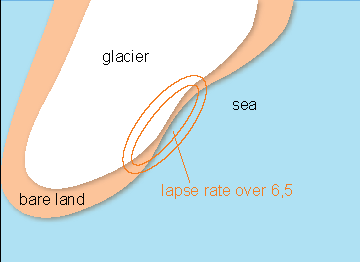

Potentially unstable conditions on the southeastern coast of Greenland, indicated by a lapse rate over 6.5
10m wind
|

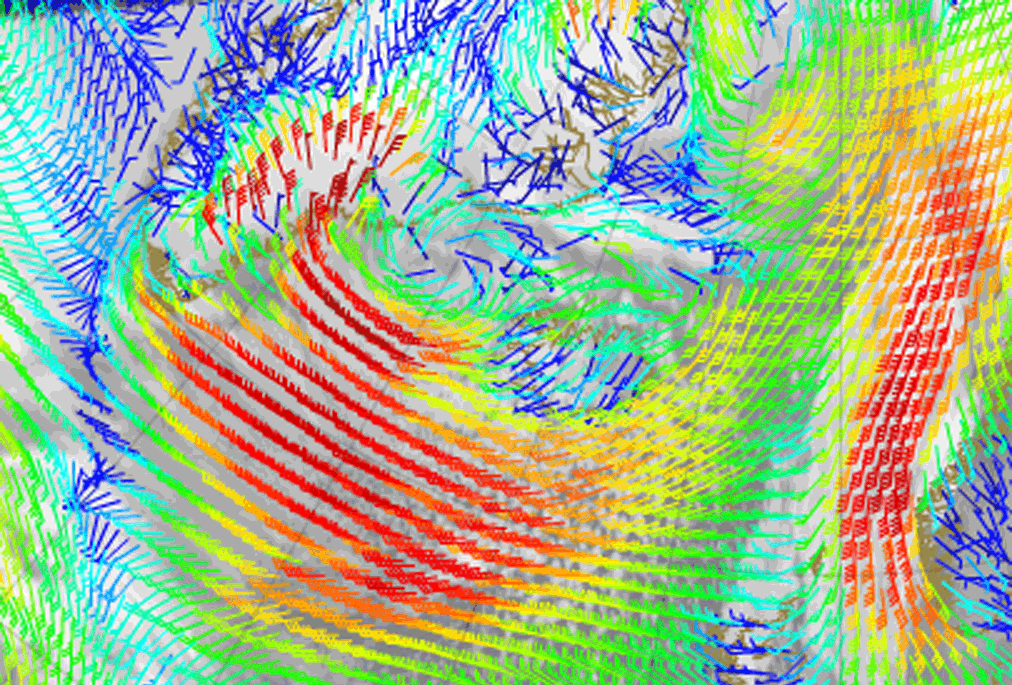

16 February 2015/12 UTC - Seviri IR 10.8 image; 10m wind: dark blue: 2-3 m/s, blue: 4-6 m/s, cyan: 7-8 m/s, green: 9-13 m/s, yellow: 14-16 m/s, orange: 17-18 m/s, red: 19-21 m/s, dark red: over 21 m/s
|
|
|
|
Temperature advection at 700 hPa
|

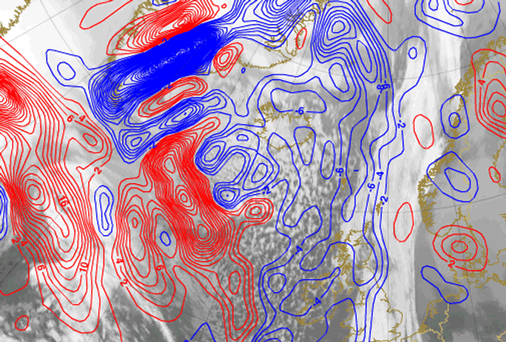

16 February 2015/12 UTC - Seviri IR 10.8 image;red: warm advection 700 hPa, blue: cold advection 700 hPa
|
|
|
|
Mean sea level pressure
|

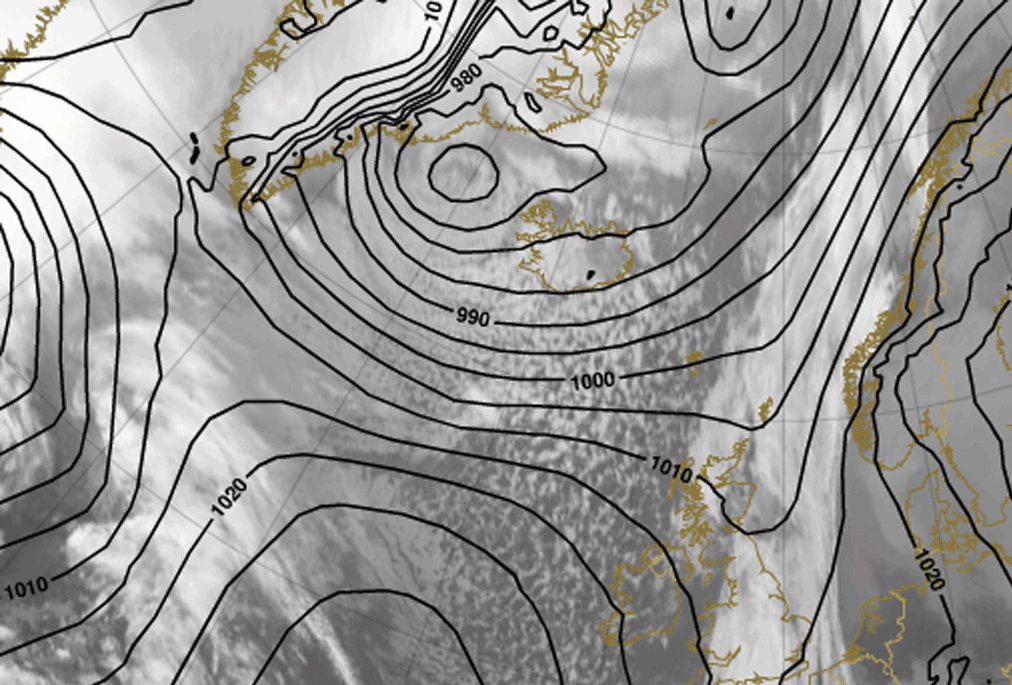

16 February 2015/12 UTC - Seviri IR 10.8 image; black: mean sea level pressure
|
|
|
|

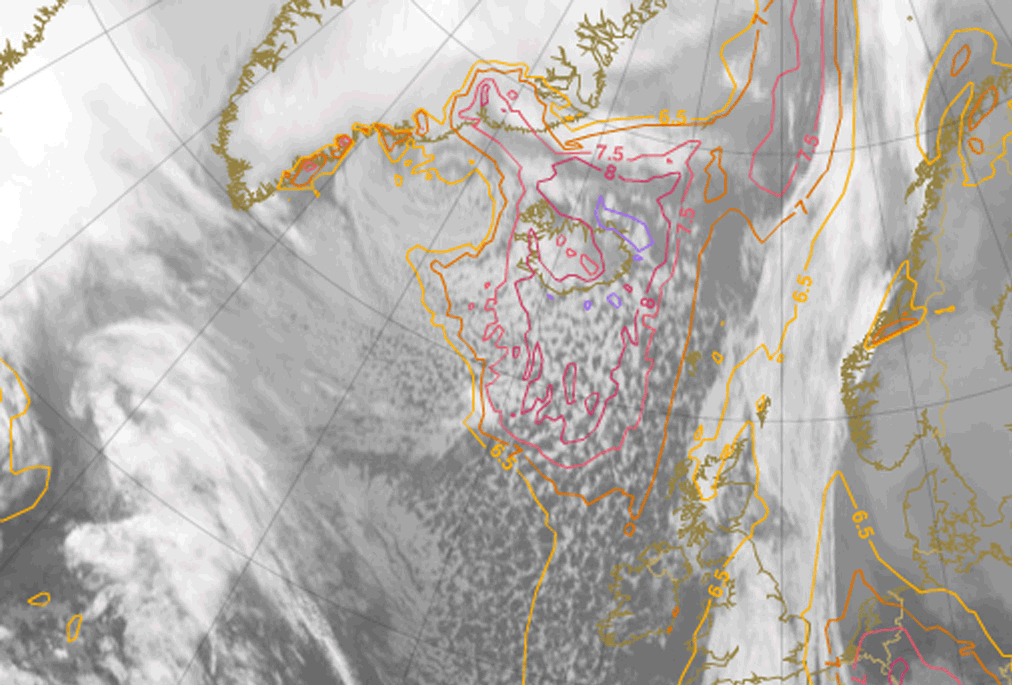

Lapse rate
|
16 February 2015/12 UTC - Seviri IR 10.8 image; orange to magenta: lapse rate
|
|
|
|
