Example

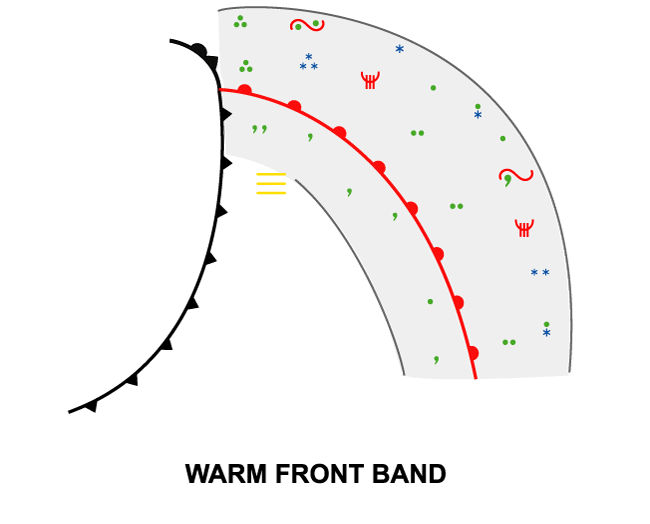

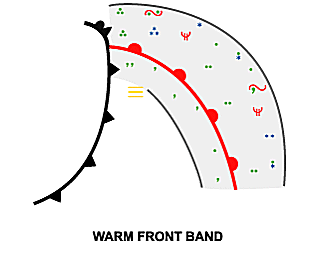

The cloud configuration accompanying the Warm Front Band (WFB) can be seen over the Atlantic extending from south of Iceland (approx 60N/20W) to Norway. In this example the cloud band has a bright texture, partly due to embedded Lee Clouds over Iceland. The Warm Front cloud band is usually much shorter than the connected Cold Front cloud band.
|
|

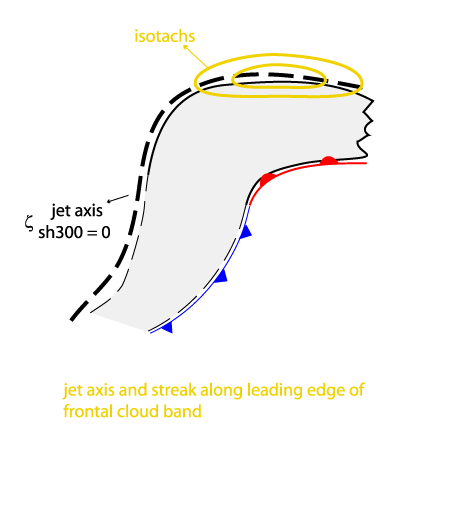

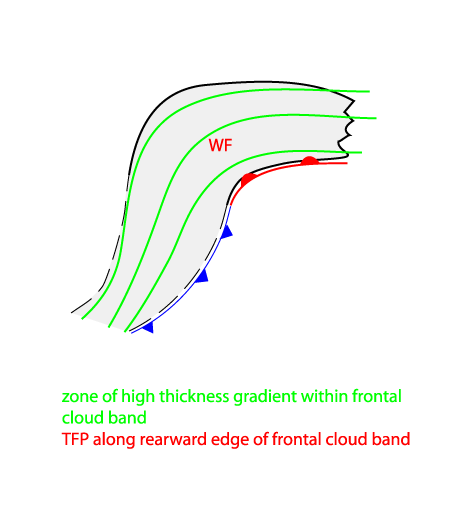

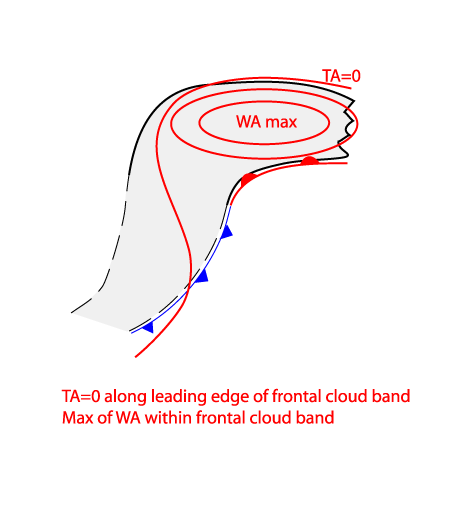

Key Parameters
|
|
|

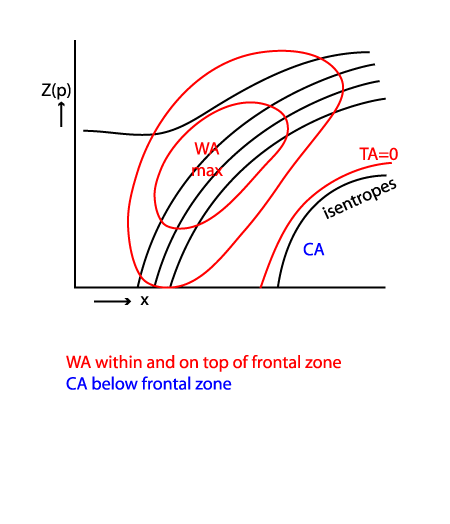

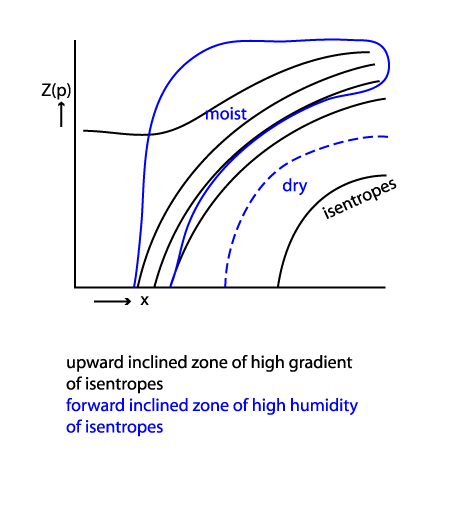

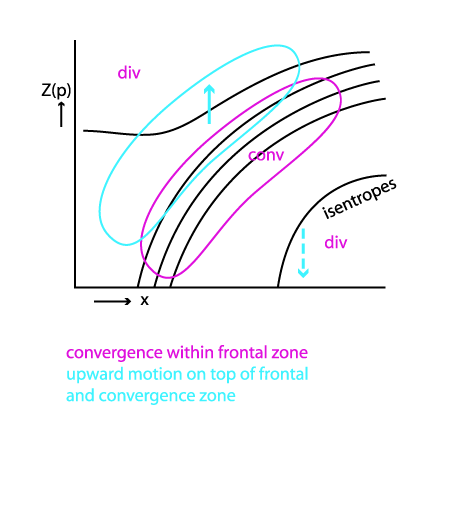

Vertical Cross Sections
|
|
|
