Short Version

Example

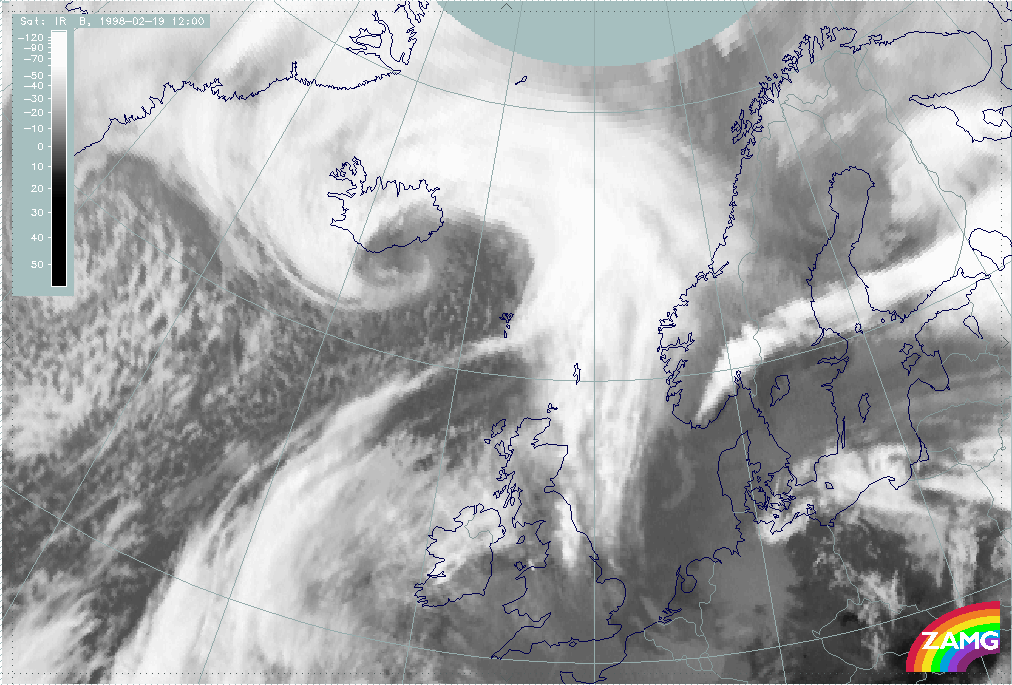

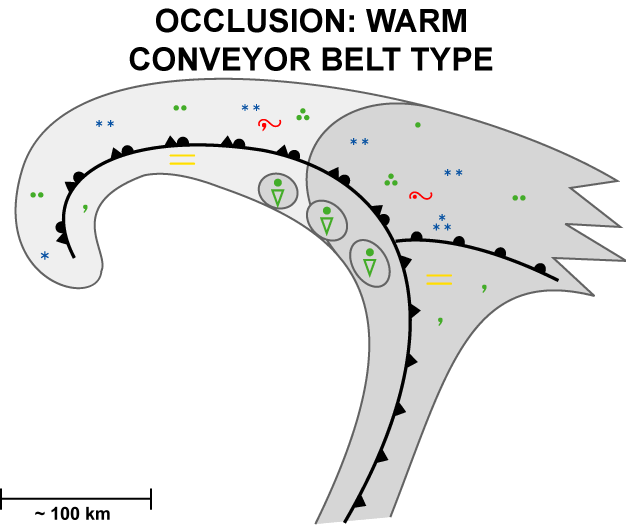

The cloud spiral of a WCB Occlusion extends from the Norwegian Sea across Iceland. Such an appearance occurs also in the mature stage of every Occlusion type. The innermost part of the spiral often is overrun by a dark dry area in the WV image leading to convective development there.

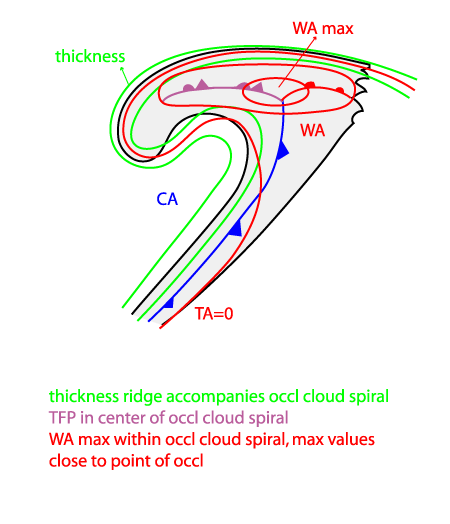

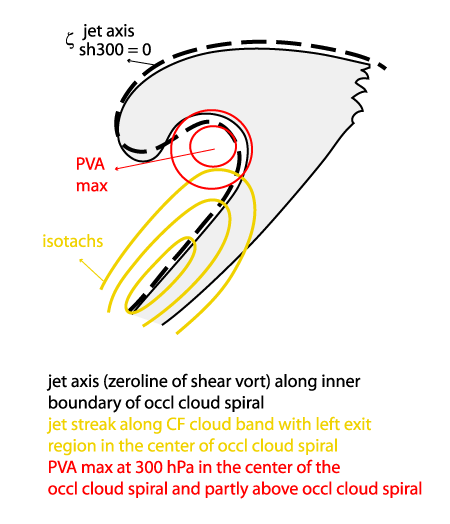

Key Parameters

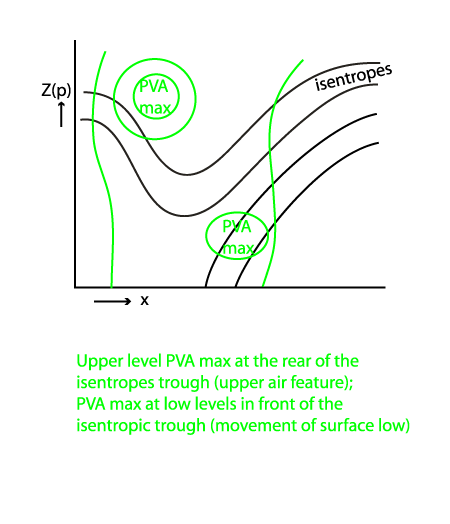

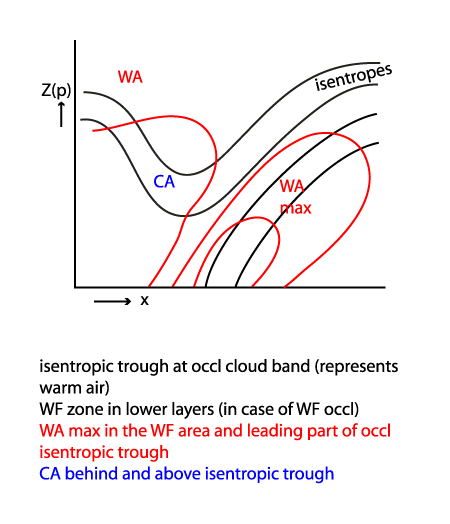

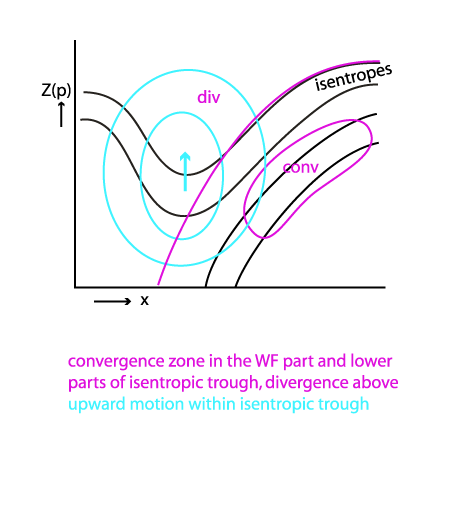

Vertical Cross Sections
