Short Version

Example

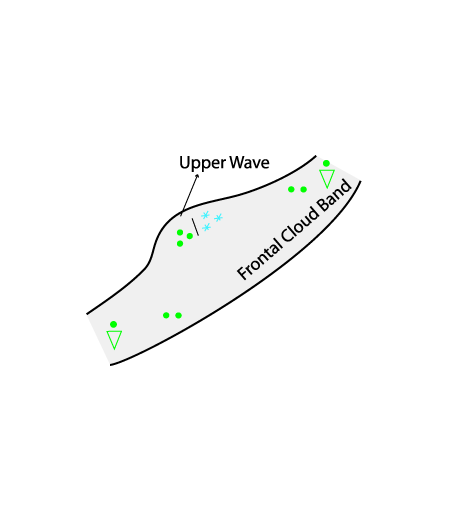

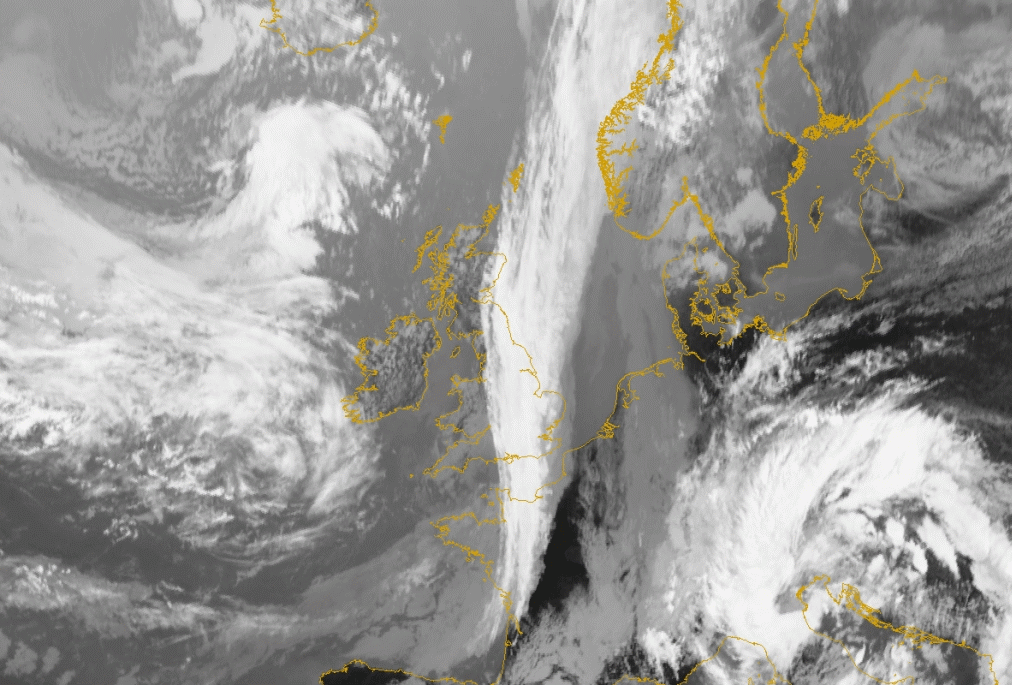

The example shows the bright multilayered cloud bulge of an Upper Wave over the North Sea. An associated jet fibre indicates strong upper winds.

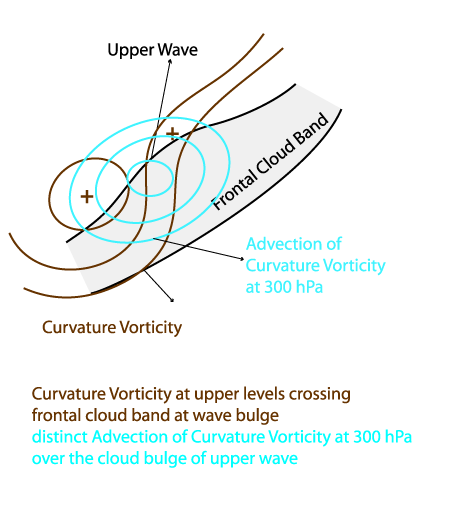

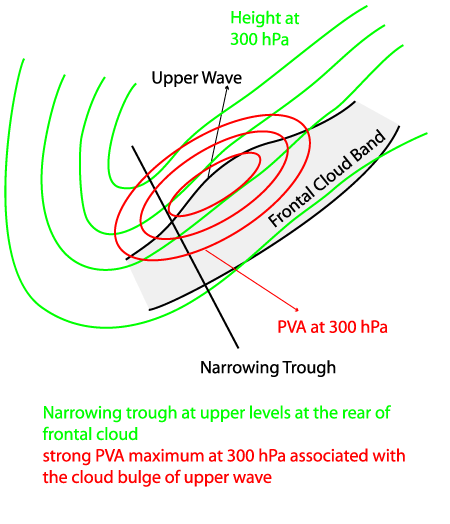

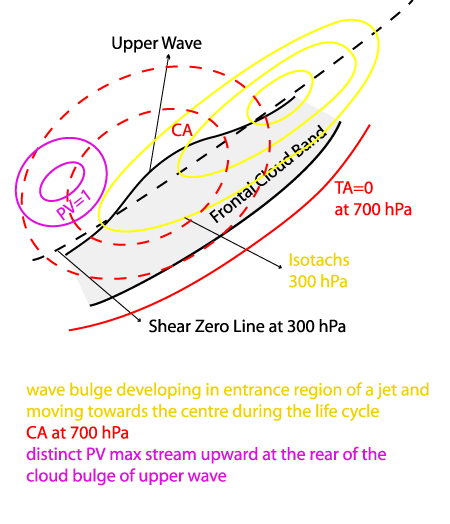

Key Parameters

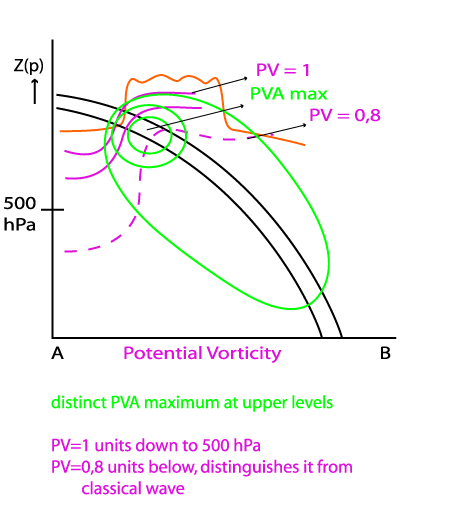

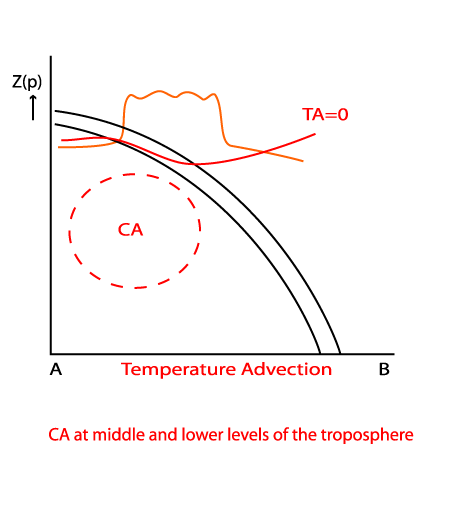

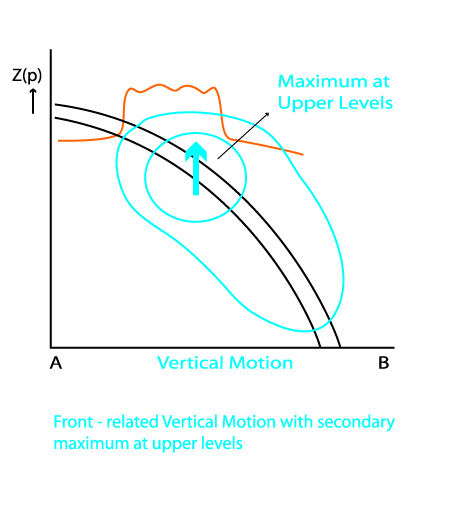

Vertical Cross Sections
