Example

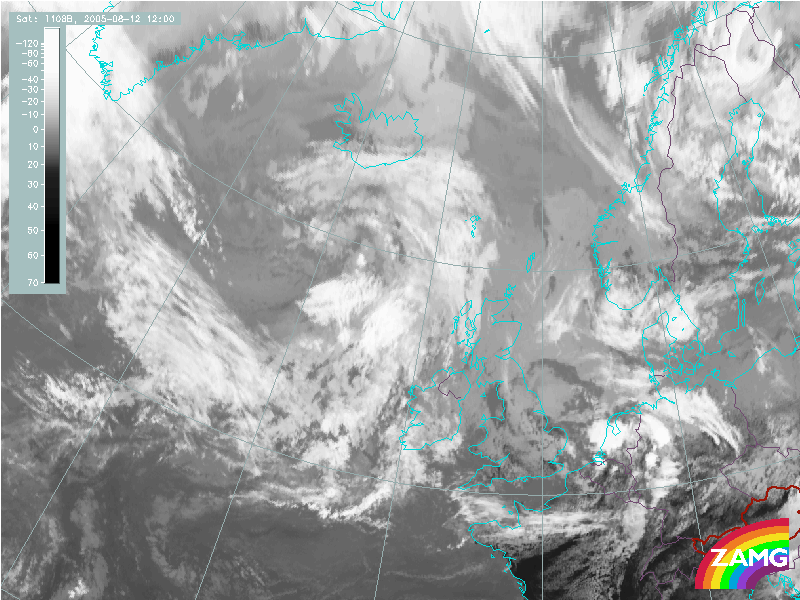

A typical Front Intensification by Jet Crossing cloud area can be seen in the white cloud bulge west of Ireland (57N/18W) over the Atlantic on the rear of the frontal cloud band extending from the Atlantic towards Ireland and further north into the northern Atlantic (Shetland Islands).
|
|

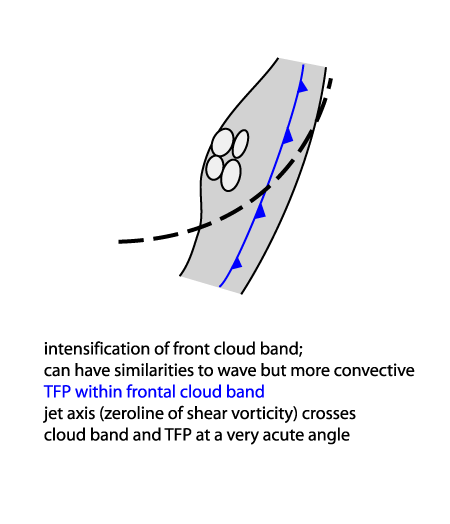

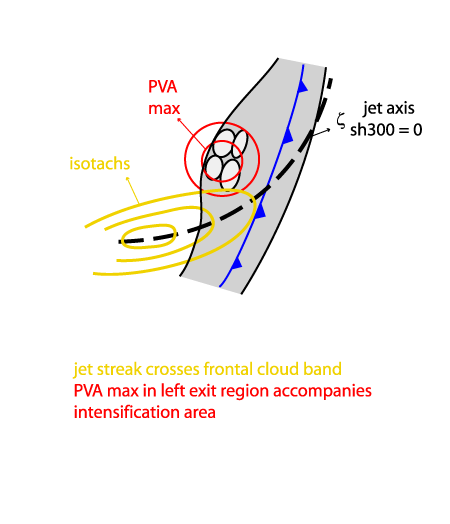

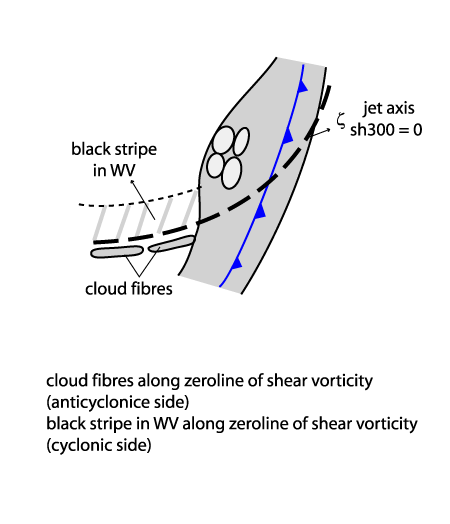

Key Parameters
|
|
|

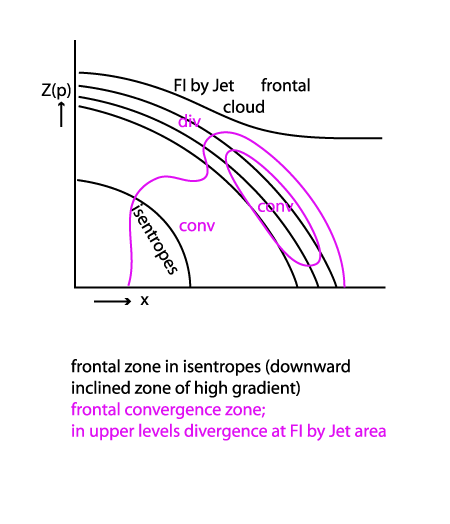

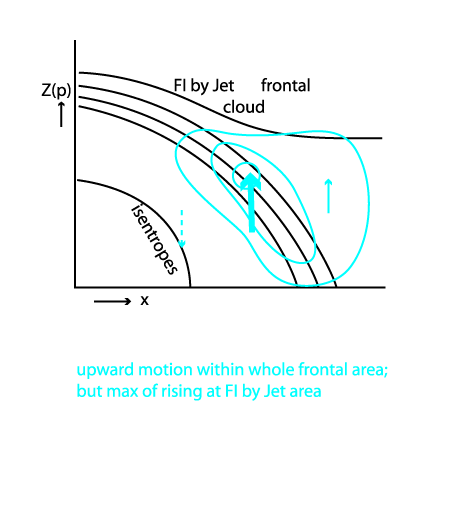

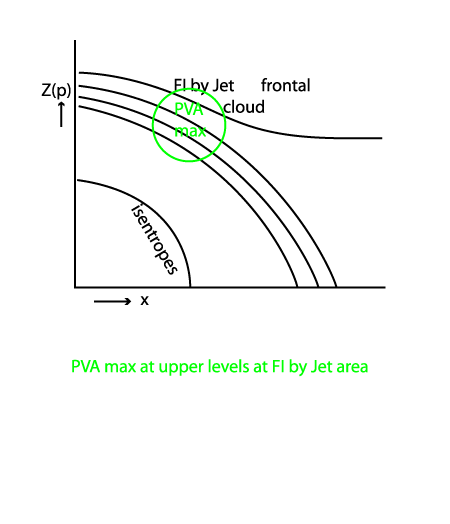

Vertical Cross Sections
|
|
|
