Development of a Mesoscale Convective System
Meteosat 8 images in infra-red (10.8 µm), water vapour (6.2 µm) and high-resolution visible together with rapid-scan Meteosat 7 images, are used to show the development of the system.

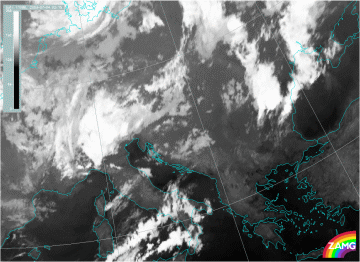

04 July 2003/02.15 - Meteosat 8 (MSG) IR image (10.8 µm); 02.15 - 11.15 UTC quarter-hourly image loop
|

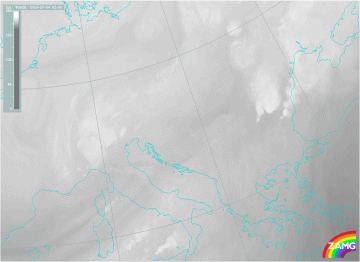

04 July 2003/02.00 - Meteosat 8 (MSG) WV image (6.2 microm); 02.00 - 11.00 UTC quarter-hourly image loop
|

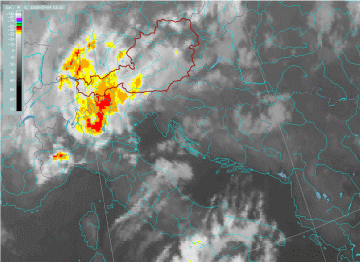

04 July 2003/03.30 - Meteosat IR enhanced image; 03.30 - 08.00 UTC 10 Minutes image loop
|

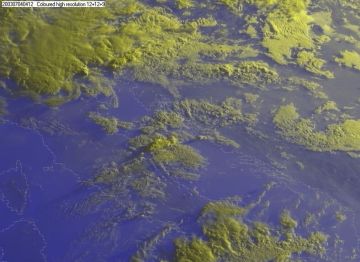

04 July 2003/ 04.00 - Meteosat 8 RGB composite HRVIS-HRVIS-10.8; 04.00 - 10.14 UTC quarter-hourly image loop
|
In order to emphasize both the visible (HRVIS) and the infra-red component, an RGB composite was produced with the high-resolution visible image on red and green part of spectrum, and IR 10.8 µm on blue. According to the MSG Interpretation Guide this combination of channels (HRVIS and 10.8 µm) is used to detect clouds and convection during daytime. With this combination a clear distinction can be made between thick Cb clouds and Ci anvils.
The development of the system started with a small cell in the Adriatic, moving towards the Croatian coast. The triggering of the strongest
convection seems to have taken place between 05.00 and 05.30 UTC, to the right of the initial cell. At 05:00 there was a line of small cells
over the island of Dugi Otok, spreading towards the mainland. At 05.15 the cell over the island is starting to grow while at 05.30 it is
already a well defined convective system with overshooting tops and an elongated shadow showing its huge vertical size. Over the next 30
minutes the cell developed rapidly and SYNOP stations in its vicinity already reported thunder and hail. In the 06.00 UTC image the
overshooting tops as well as the cirrus anvil are clearly seen. In channel 3.9 µm imagery ice clouds are darker then dense water clouds,
and the cirrus anvil above the cell is easily seen. In the image at 07.45 UTC, a plume over the anvil can also be detected. There is also a
tail-like line of low clouds that can be seen in all images after 07.15. This marks the outflow boundary from the convective system.
At the same time, convective development took place in the region of the Eastern Alps and western Croatia. That area was in the region of
strong PVA, in the left exit region of a jet streak (see Initial Weather Situation).
