Forecast Cloud Contours

22 June, 1830 - 23 June, 0400 UTC

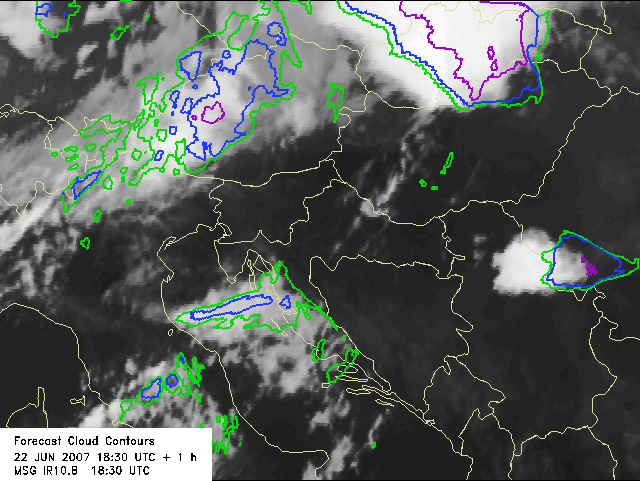

22 June 2007, 1830 UTC
Forecast cloud contours show the expected position and shape of the cloud structures in the next hour, based on the extrapolation performed using cloud motion vectors. Relatively good fit with the development and movement of the convective clouds can be noticed, especially after 2200 UTC.


Isolines which delineate the area of cloud top temperature lower than -60 °C (violet line) have a good forecast value (position and shape) during severe convective development over the north and north-east Croatia, and further to the east, between 0100 and 0300 UTC.
