Examples of Interpretation
Two cases are shown with annotations to demonstrate the proper interpretation of different surface and cloud types (Figs. 6 and 7).

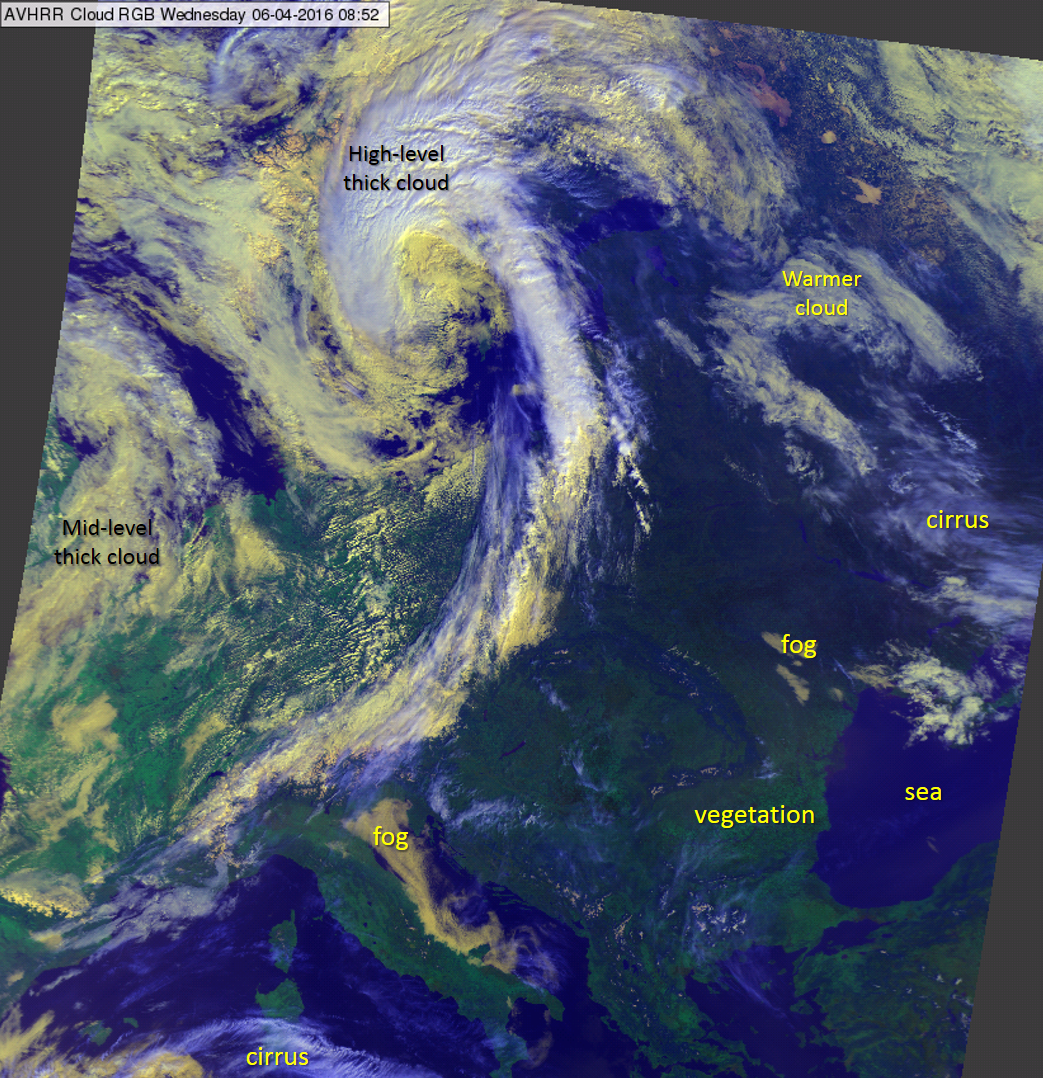

Figure 6: METOP-B AVHRR Cloud RGB image on 6 April 2016 at 08:52 UTC

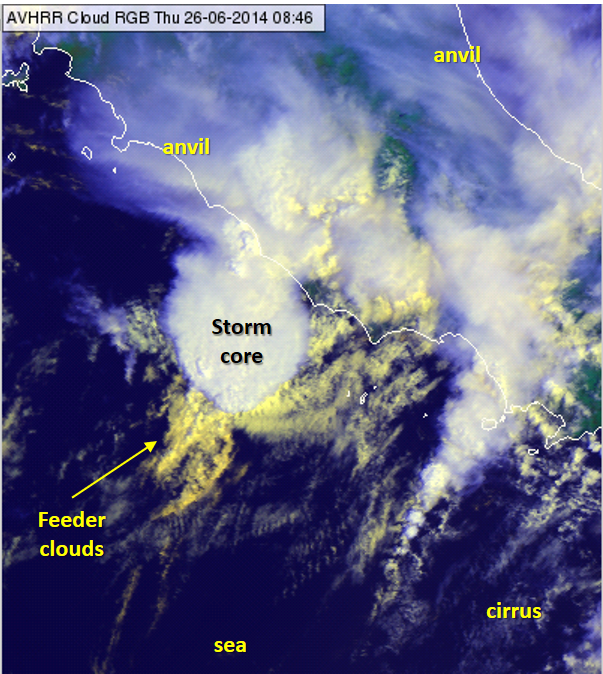

Figure 7: AVHRR Cloud RGB image off the coast of Italy on 26 June 2014 at 08:46 UTC
