Examples of interpretation
Three cases are shown with annotations to demonstrate the proper interpretation of different surface and cloud types in Night Microphysics RGB images (Figs. 10 - 12).

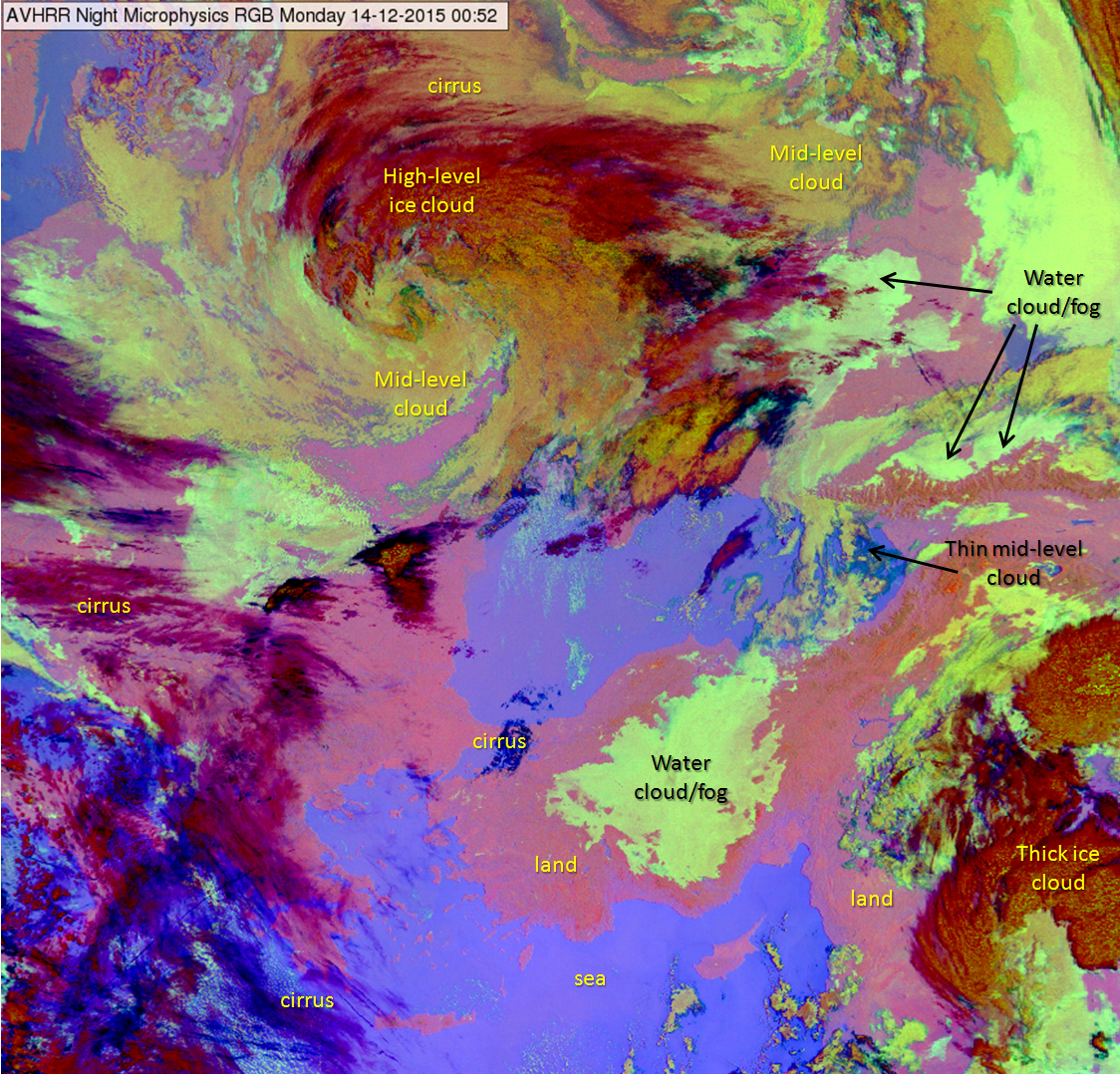

Figure 10: AVHRR Night Microphysics RGB on 14 December 2015 at 00:52 UTC

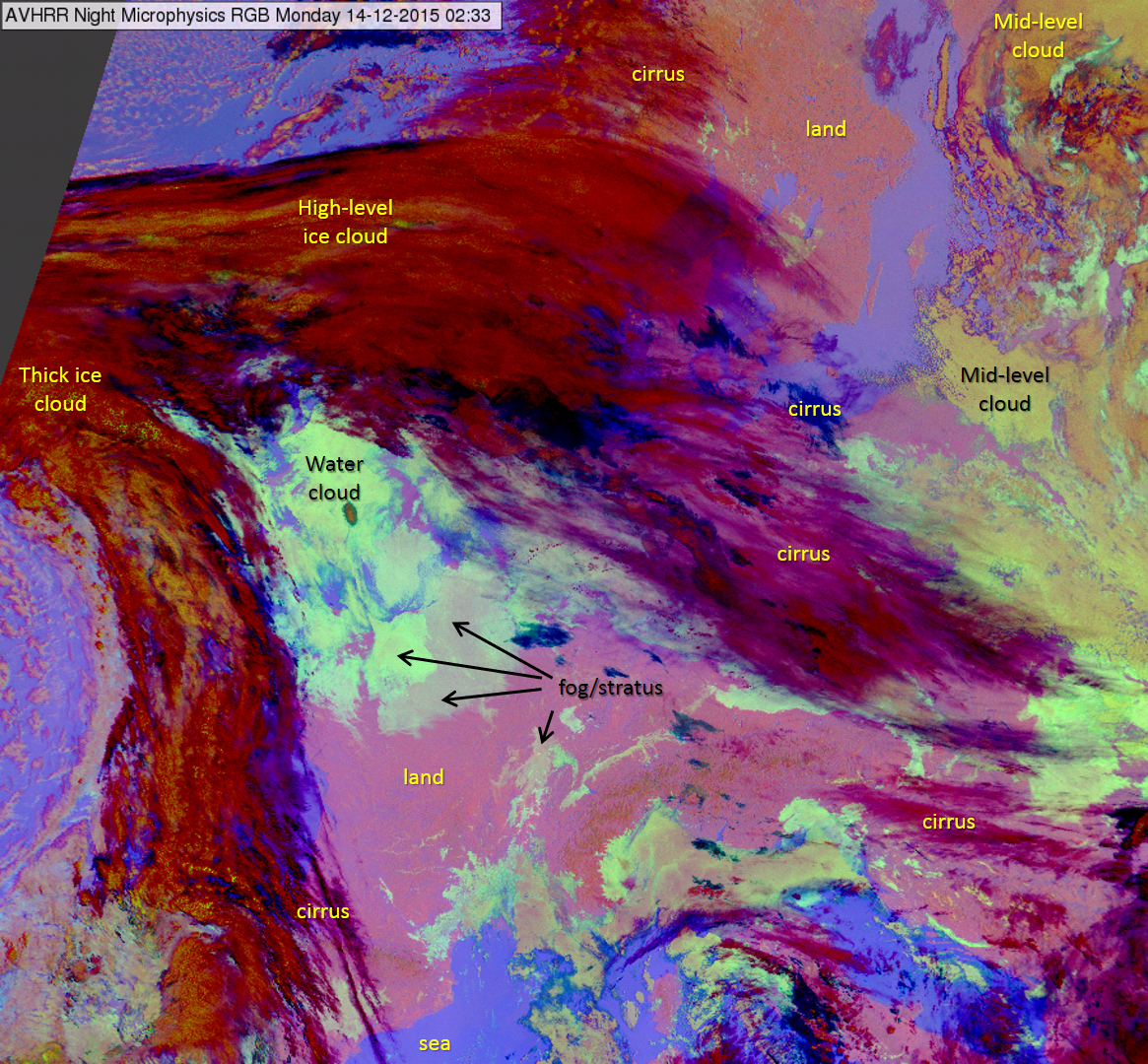

Figure 11: AVHRR Night Microphysics RGB on 14 December 2015 at 02:33 UTC
Note that thick fog/low level clouds (stratus) appear green in the case of small water droplets or gray with a pinkish tone in the case of large droplets. Thin fog and stratus also appear gray with a pink tone.

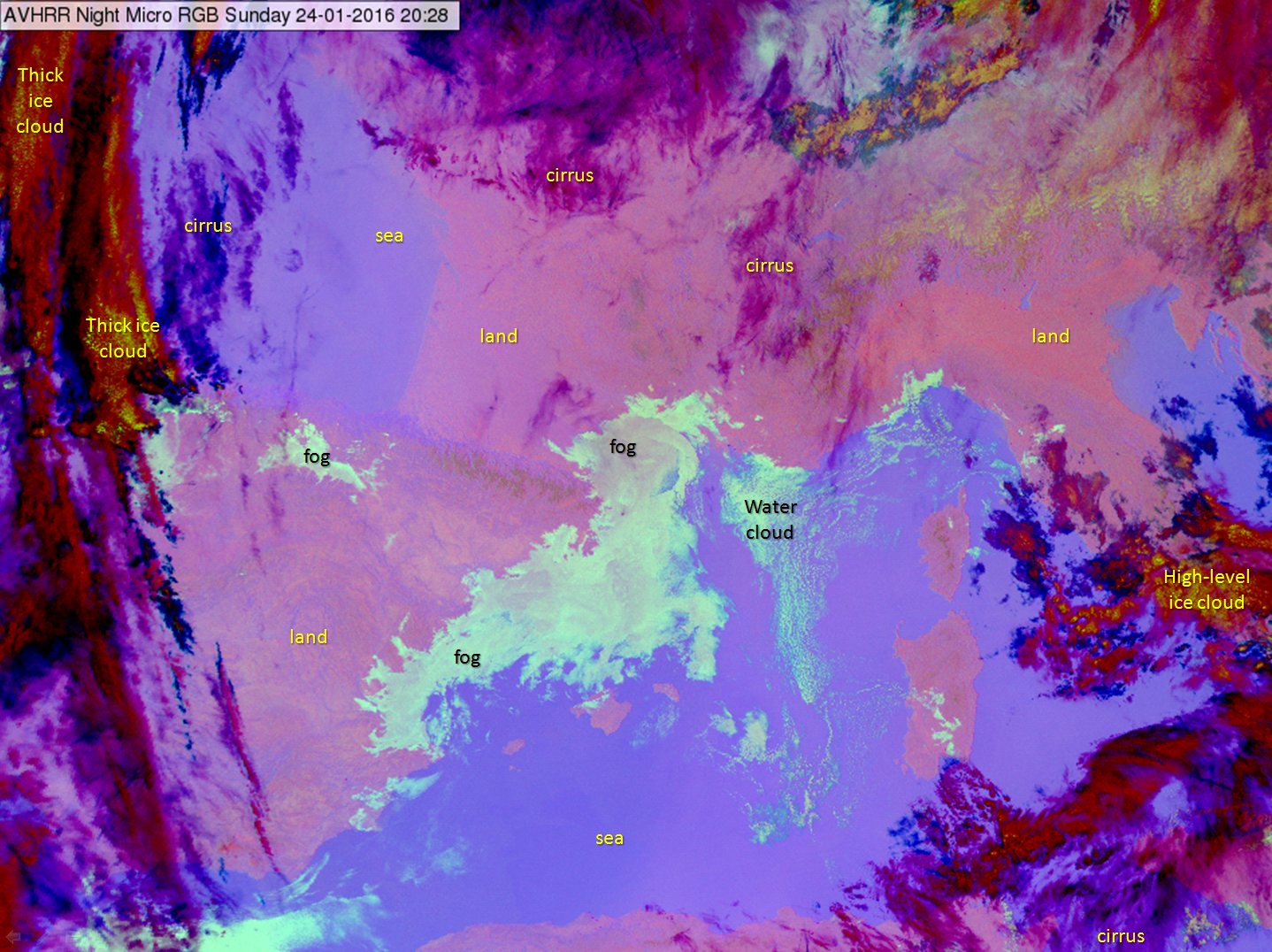

Figure 12: AVHRR Night Microphysics RGB on 24 January 2016 at 20:28 UTC
