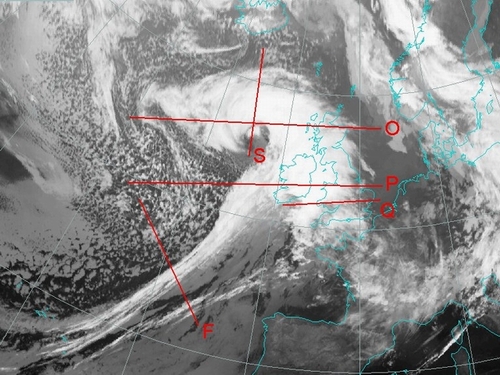

Here is an example of a frontal cloud system. It has been cut along 5 different lines.
Can you identify which of the cross sections of the isentropes below is
connected to the cross-section lines marked on the satellite image?
Click on the cross_section to enlarge it and then choose the correct letter! HINT: Look also at the IR pixel values (orange line in the cross section). They can give you an idea what a cloud band should look like, which could help you decide about the right answer!
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
