NWCSAF: Cloud Type

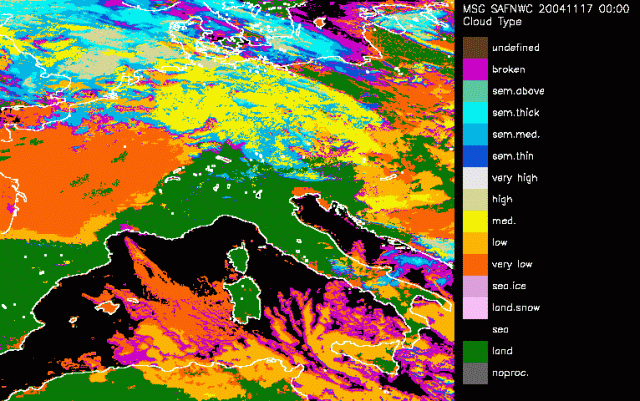

17 November 2004/00.00 UTC - Cloud Type

The main objective of the Cloud Type product is to distinguish between thin and opaque clouds and provide a rough estimate of the cloud top height, and try to distinguish between water particle clouds and ice particle clouds. In addition to this the aim is to be able to delineate stratiform and cumuliform clouds. The highest priority is given to the reliable identification of the major cloud categories: low, medium, high, and semi-transparent cirrus. The product which prototype was developed using the spectral information from AVHRR data is adapted in the NWCSAF using several SEVIRI channels.

The CT classification algorithm is based on the following approach:

Following this we seen in the first image most of France covered by low clouds, most likely SC sheets or Fog. Furthe rnorth over the Britain, the North Sea, Netherlands and Germay an area with medium and semi-thick clouds is observed. Even further north over the southern tip of Skandinavia brokejn cloud are observed. This was also the area that was diagnosed as cloud contaminated in the CMa (Cloud Mask). In the next few hours the remains of depression "Quimburga" mover over Central Europe and the accompanying frontal system is diagnosed as semi thick clouds, as one would expect.

At 18 November 18UTC the RaCy is clearly seen over Western Europe. We see the cloudhead over the North Sea, Netherlands and Denmark, which is diagnosed as high cloudiness. Down to the south the cold frontal part is diagnosed as semi thick clouds seen over France. In between is the dry intrusion, pictured here as medium to low clouds (further west), because of the deepening of the stratospheric air.

Another nine hours later at 19 November at 03UTC the remarkable second cyclogenesis is observed in the Cloud Types. A first PV anomaly is observed over Southern Germany, a second area of cyclogenesis is found just south of the Alps in the eastern part of Austria. Both these areas are diagnosed well by medium and low clouds. Another 3 hours later this separation of two areas of cyclogenesis is even better seen. The cloudhead of the RaCy is consistant of high clouds and the cold frontal part as semi thick cloudiness. At 09UTC the influence of the Alps is visible. High barrage clouds north of the Alps and further down south more lee clouds. The rol of the Alps on the cyclogenesis is also quetionable now. The two PV anomalies are still observed. A northern one over Poland and further south in Slovenia the second cyclogenesis. A discrimination that becomes even clearer at 12 UTC. The dry intrusion part of the PV anomalies is diagnosed as low to medium clouds separated by the Alps.
